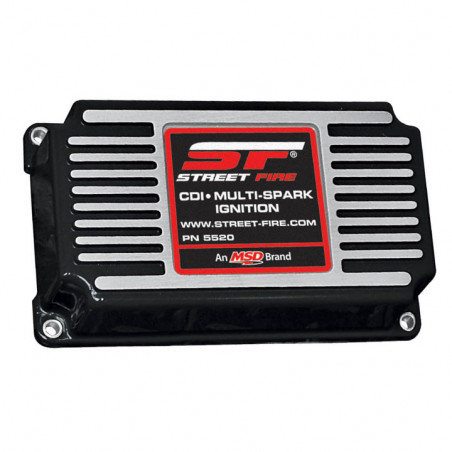

1967-2021 Camaro MSD Street Fire Ignition Control 5520

The Street Fire Capacitve Discharge Ignition is perfect for performance enthusiasts with a tight budget. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that last for 20 degrees of crankshaft rotation when the engine is running at lower rpm. This ensures combustion of the air/fuel mixture and produces great throttle response and smooth idle. The CDI is built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. An adjustable rev limiter will protect the engine in the event of driveline failure. This rpm is adjustable with rotary dials in 100 rpm increments. Whether your Camaro has a 4, 6 or 8-cylinder engine, the Street Fire CDI will connect and fire it up!

Features:

• Capacitive discharge technology
• Multiple sparks improve starting and idle
• Full power output at high rpm
• Easily connects to points, amplifiers and magnetic pickup distributors
• Adjustable rev limiter for overrev protection

Specs:

• C.A.R.B. EO #: D-40-43
• Current Draw: .7 Amp per 1,000 RPM
• Primary Voltage : 435 Volts
• RPM Range: 15,000 RPM with 14.4 Volts
• Secondary Voltage: 43,000 Volts
• Spark Energy: 95 mJ per spark
• Spark Series Duration: 20 Degree Crankshaft Rotation
• Voltage Required: 10-18 Volts, Negative Ground
• Weight and Size : 1.5 lbs., 6in L x 3.5in W x 1.75in H

Manufacturer Part Number : 5520

Part Notes:

CARB E.O. # D-40-43
