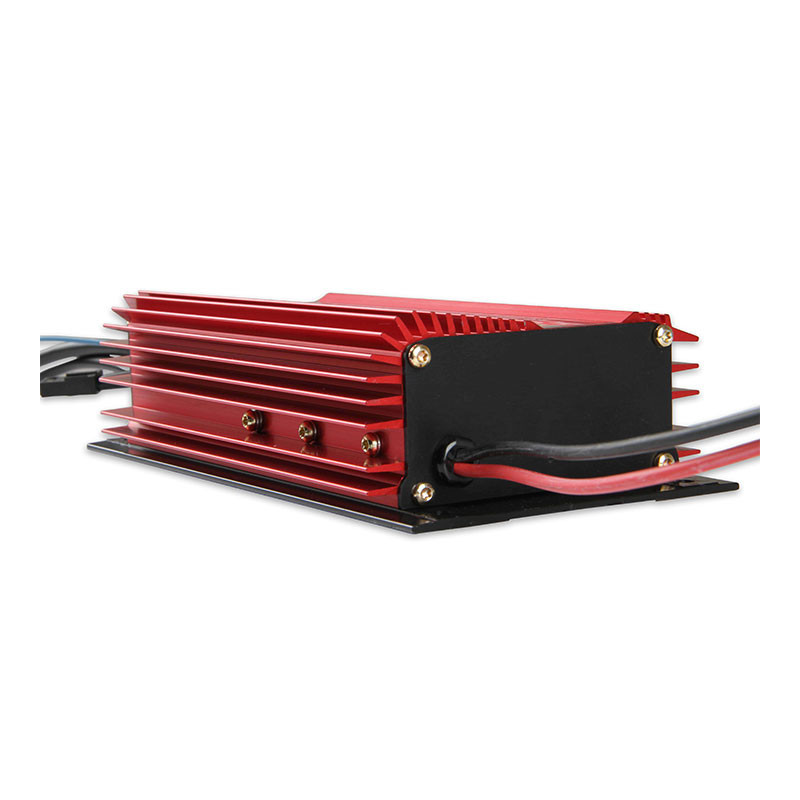

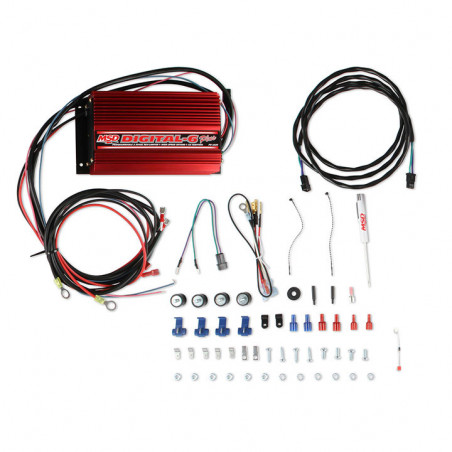

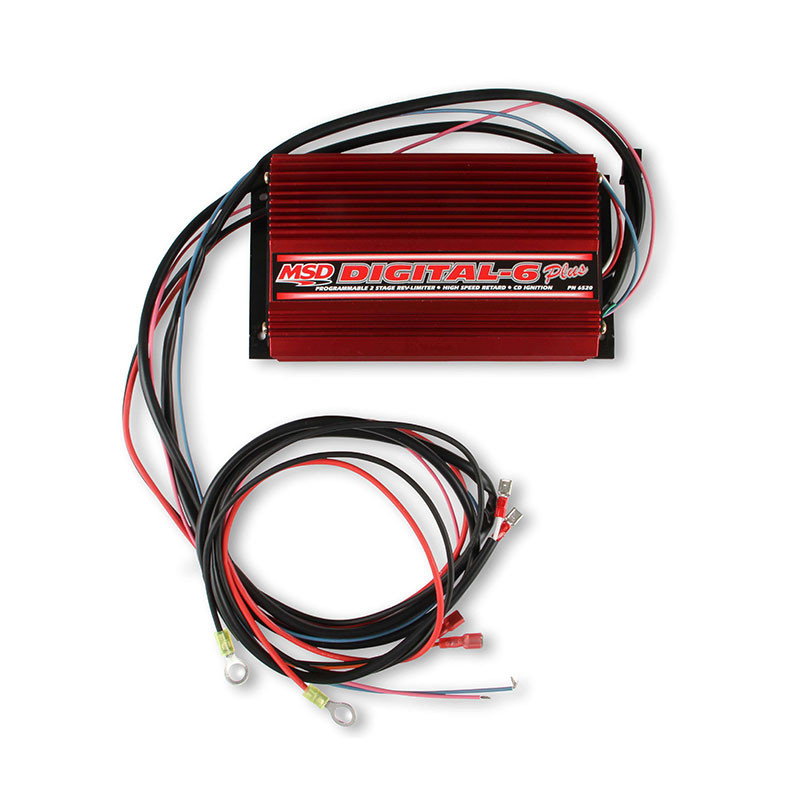

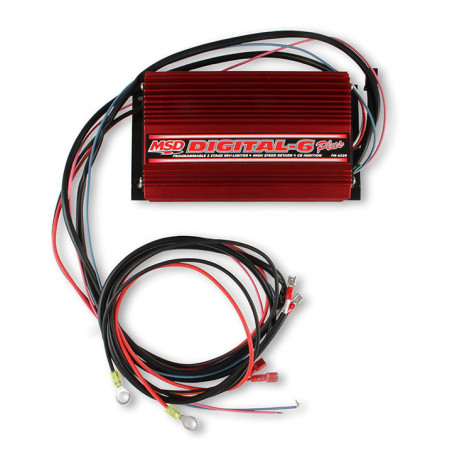

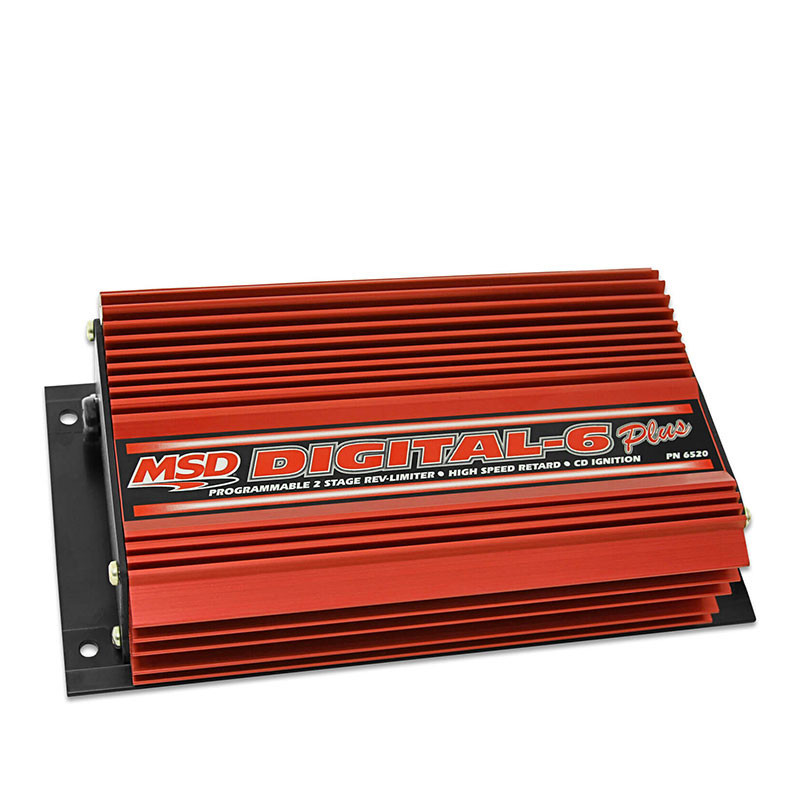

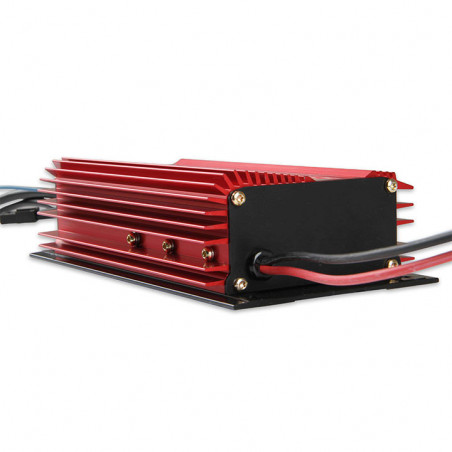

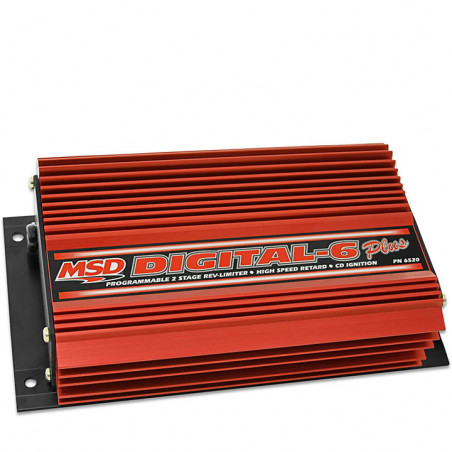

1967-2021 Camaro MSD Digital 6-Plus Ignition Control 6520

The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy and great accessories making it ideal for street/strip Camaros. Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts. For nitrous equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection. The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6 or 8 cylinder engines.

Features:

• Switch between two rev limits that adjust with rotary switches in 100 rpm increments.
• Single stage retard for nitrous and top end performance.
• Start retard eases pressure on the starter, flywheel and engine.
• Adjustable magnetic pickup compensation produces accurate trigger signals.
• LED display warns of trigger signal problems or faulty charging system.

Specs:

• Current Draw: .7 Amp per 1,000 RPM
• Primary Voltage : 535 Volts
• RPM Range: 12,500 RPM with 14.4 Volts
• Secondary Voltage: 45,000 Volts
• Spark Series Duration: 20° Crankshaft Rotation
• Voltage Required: 12-18 Volts, Negative Ground
• Warranty: Limited 1 Year Warranty
• Weight and Size : 3.7 lbs., 8.5in L x 4.5in W x 2.2in H

Manufacturer Part Number : 6520
