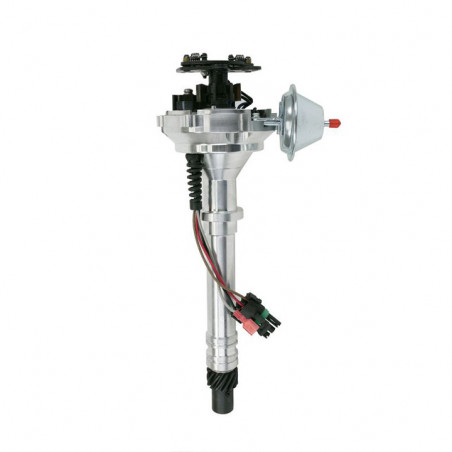

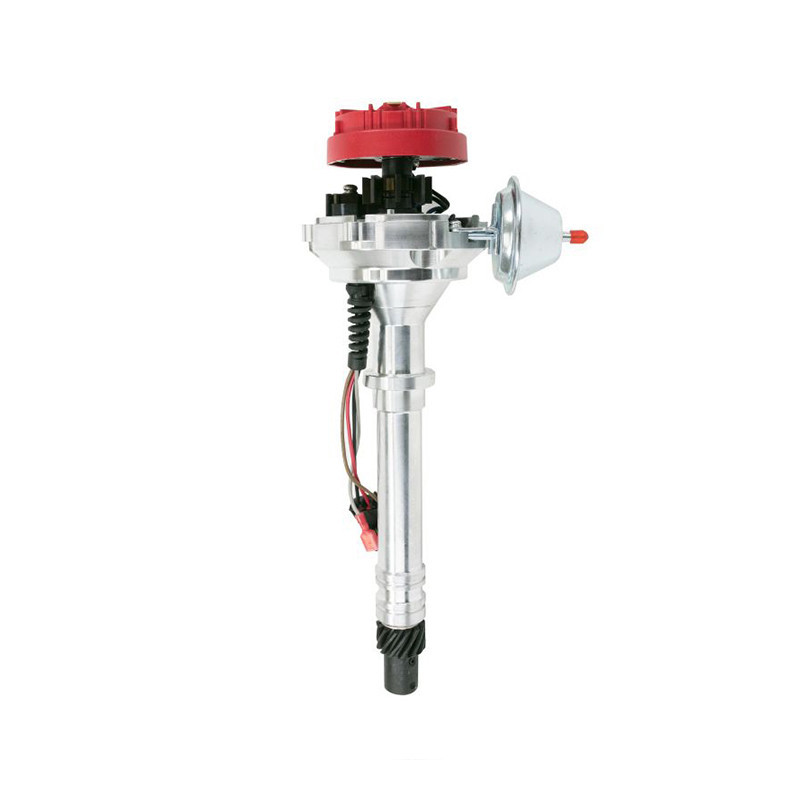

1967-2021 Camaro V8 Pro Series Ready To Run Aluminum Distributor, Red Cap JM7701-2R

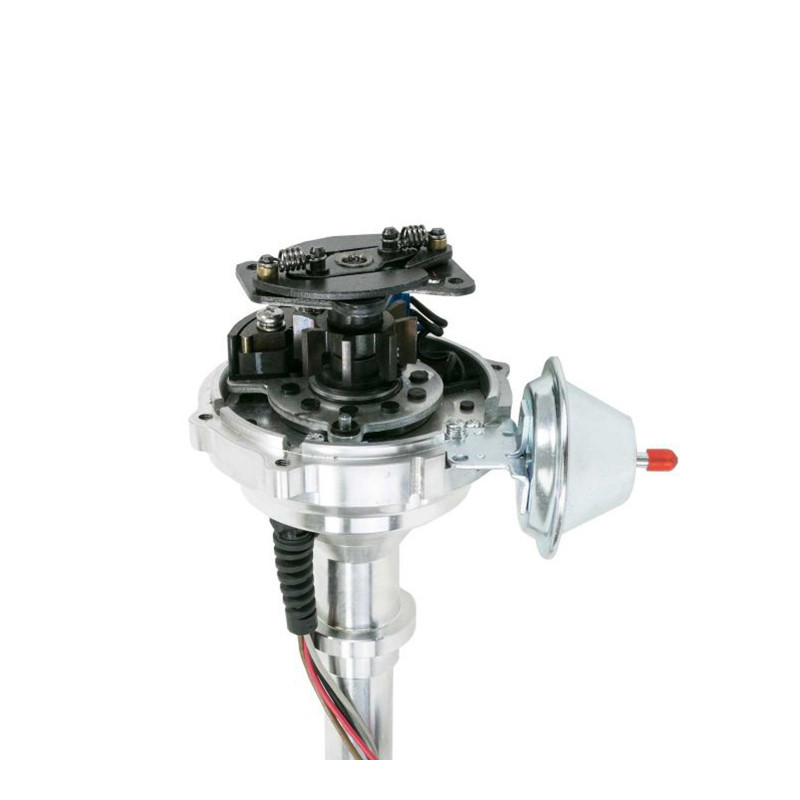

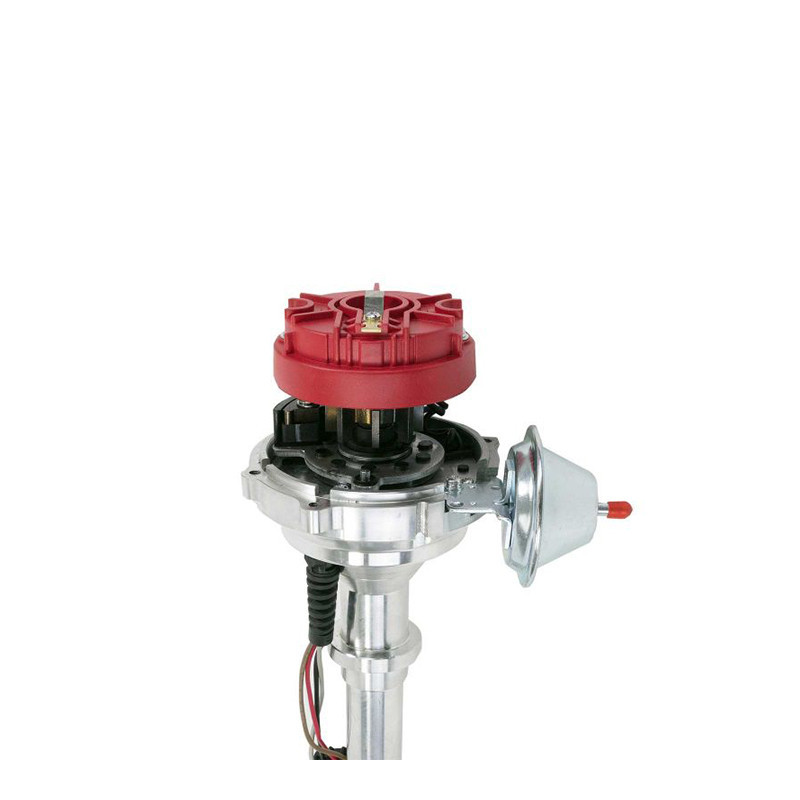

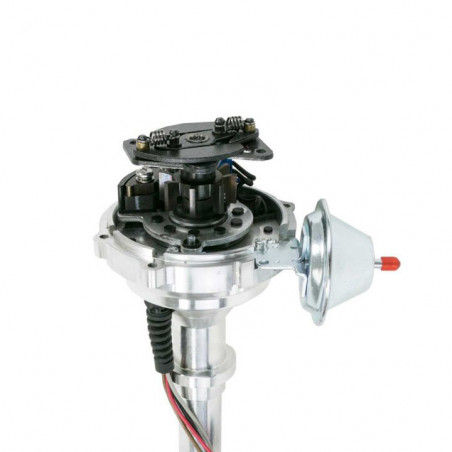

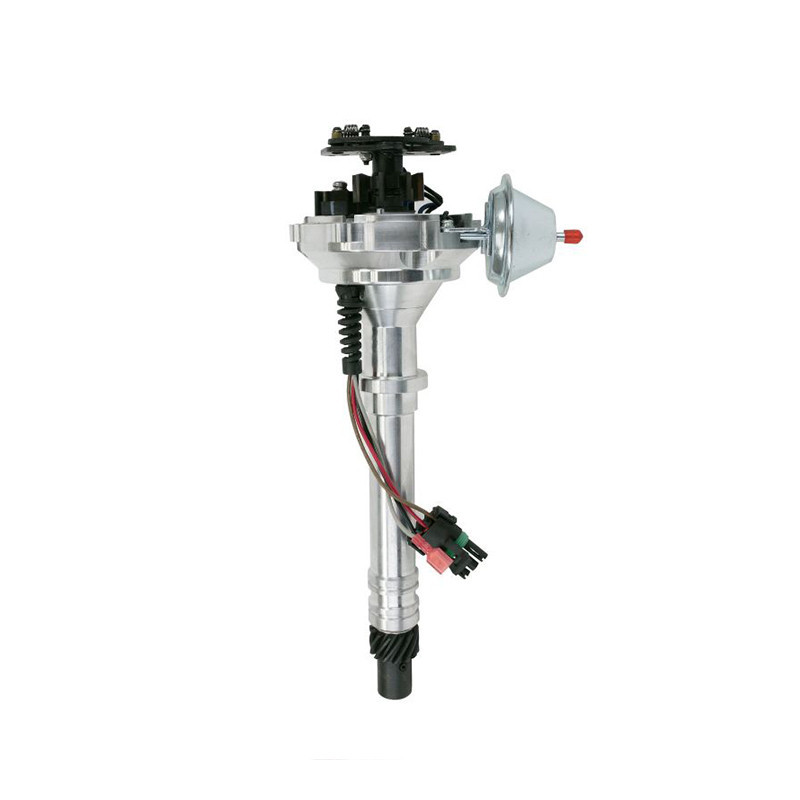

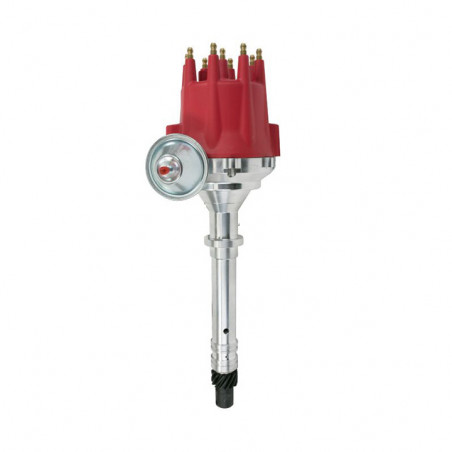

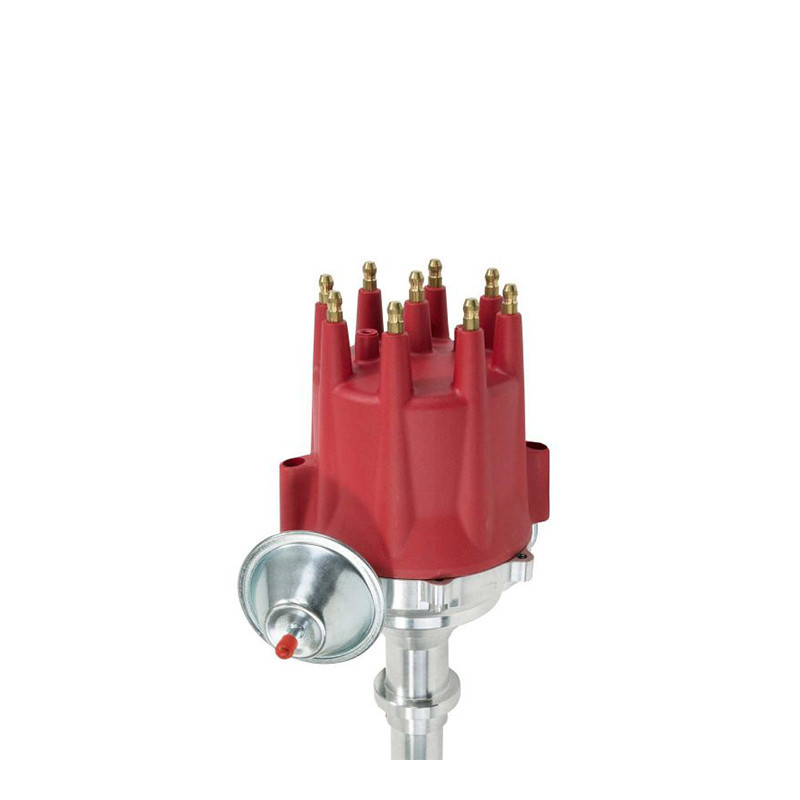

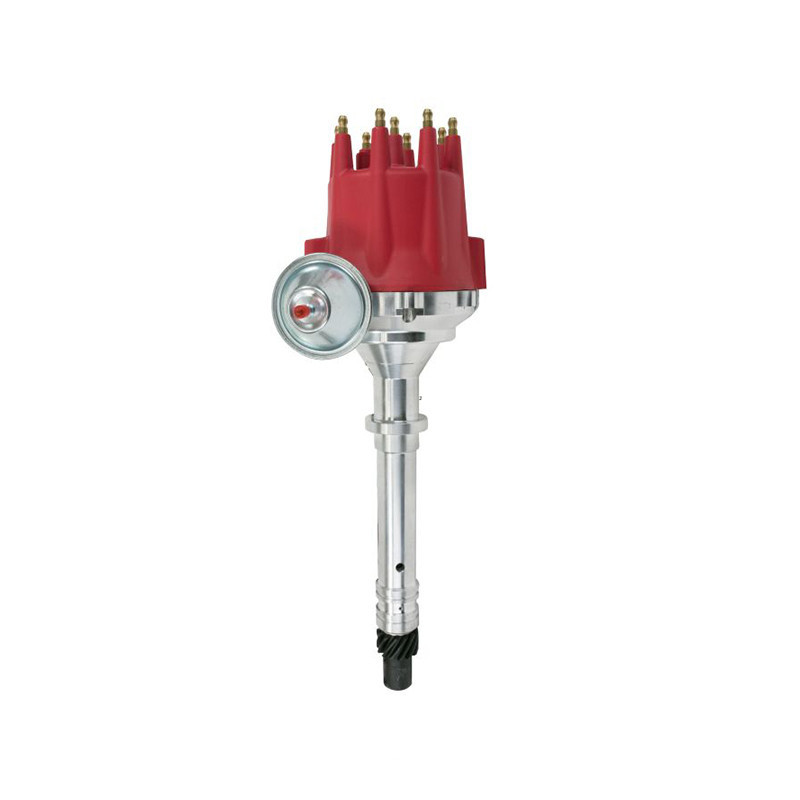

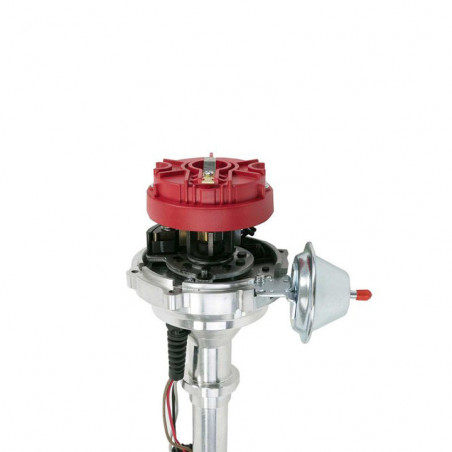

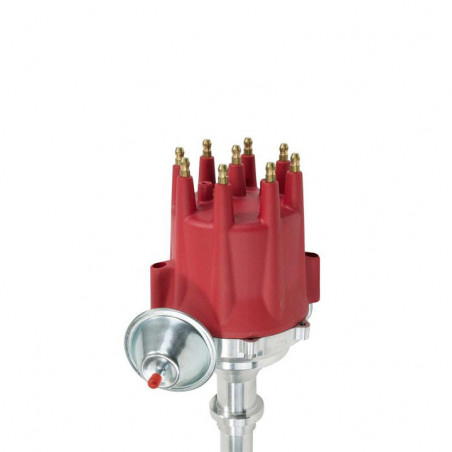

TSP's Pro Series Ready to Run Distributor is perfect for a street performance Camaro ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer. This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor. An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance. What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Build using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go!

Features and Specifications:

• Trigger Style: Circuit Board Module with Magnetic Pick-up
• Distributor Rotation: Clockwise
• Advance Type: Mechanical and Vacuum
• Cap Style: Male
• Mechanical Tach Drive: No
• Slip Collar: Yes
• Coil Included: No
• Coil Type: External
• Recommended Coil Output: 35,000+ Volts
• Gear Material: Steel
• Housing Material: Machined Aluminum
• Ignition Box Required: No
• Marine Use: No
• Cylinders: 8

Includes:

• 3 Bushings and 4 Springs for Mechanical Advance
• Color-Matched Spark Plug Wire Retainer with Screws
• Vacuum Advance Block-off Plate(Black)
• Power Extension Cable
• Tachometer Output Extension Cable

Manufacturer Part Number : JM7701-2R

Part Notes:

Will not fit if using a governor.
