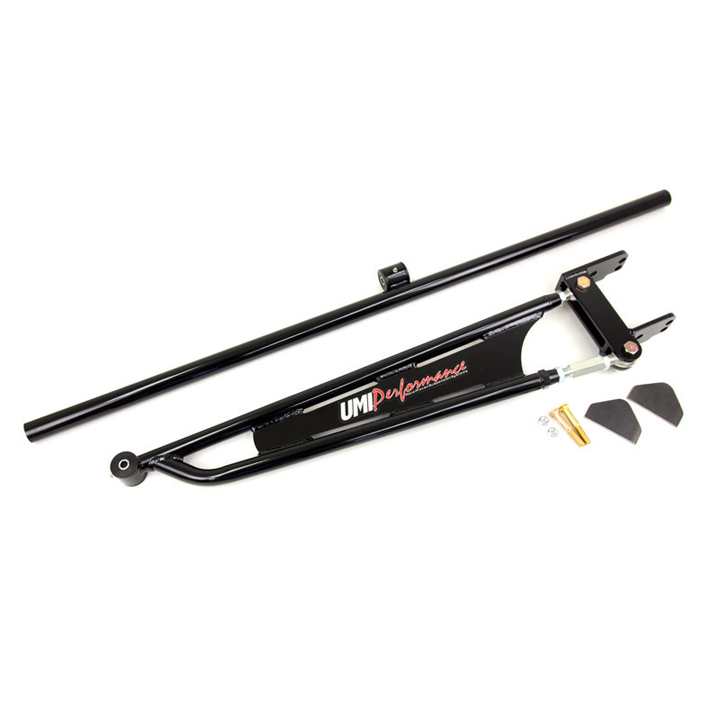

1982-2002 Camaro UMI Weld In Torque Arm, Straight Cross Member, Black 2236-B

UMI's weld-in torque arm is a great way to get UMI quality and performance in your 1982-2002 Camaro. The shortened torque arm length improves instant center and provides reduced 60 ft times and enhanced forward traction. The adjustment feature allows for optimizing the pinion angle and ensures a vibration-free driveline at any ride height. This unit is designed with a straight front cross member to clear tight fitting header/y-pipe set-ups.Since crossmember installation is weld in, you have the ability to raise or lower the crossmember before welding for perfect clearance.
Torque Arm Benefits:

• Removes torque arm from transmission tail shaft, protecting transmission from damage
• Eliminates wheel hop and solves traction problems
• Allows for on-car pinion angle adjustments
• Polyurethane bushings designed to keep road noise at a minimum
• Front mounting point utilizes a greaseable pivot point

Features:

• Torque arm constructed of 1.250 in. x 0.120 in. DOM steel tubing
• Crossmember constructed of 1.500 in. x 0.120 in. DOM steel tubing
• TIG welded 4140 chromoly tube adapters
• On-car adjuster built using 4140 chromoly steel & heat treated for maximum strength
• Polyurethane bushings are greaseable to prolong bushing life
• Laser cut plates ensure hole to hole accuracy
• Rear mounting plates use 0.375 in. thick mild steel
• Fits stock rear end as well as 12-bolt, 9 inch & S60 rear end housings
• Brilliant durable powder coat

Manufacturer Part Number : 2236-B

Part Notes:

Crossmember installation requires welding and cutting to complete installation. Torque arm must be installed with 2-point subframe connectors.
