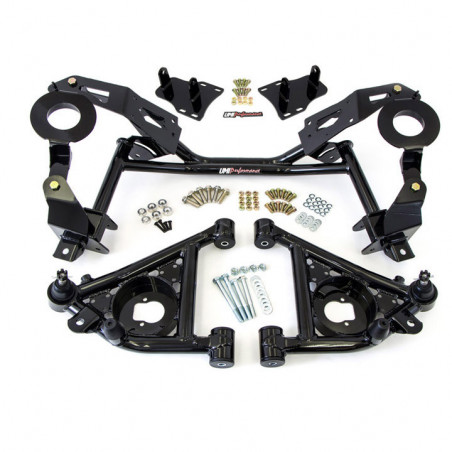

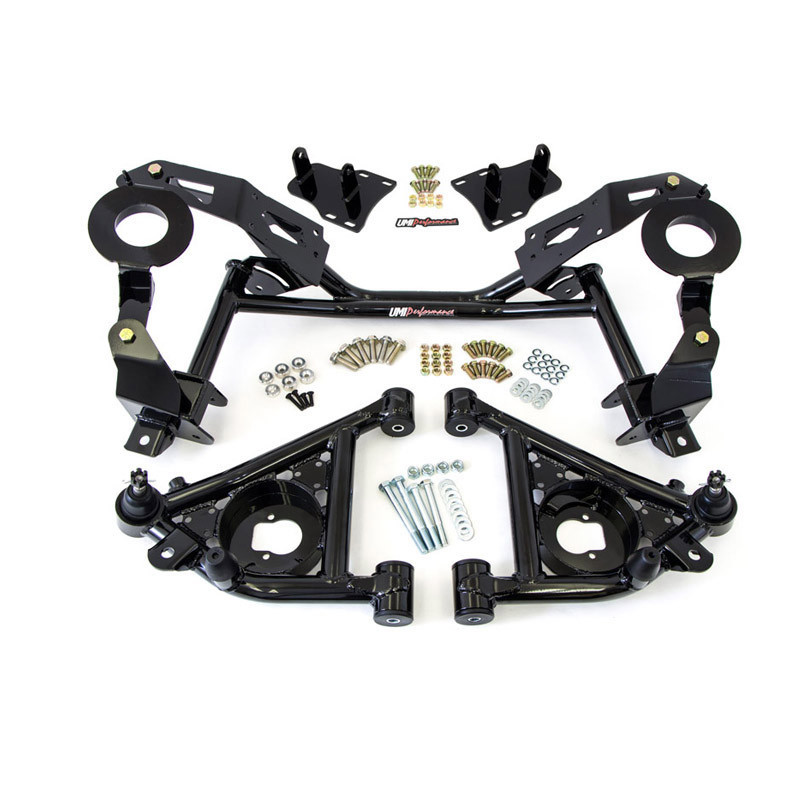

1982-1992 Camaro UMI Tubular K-Member & A-Arm Kit for LSX & Factory Springs - Black 240331-B

We all know weight equals horsepower. UMI's direct bolt-in replacement K-member and lower A-arm kit for 1982-1992 Camaro instantly removes 25 lbs of front end weight from your ride and helps your existing horsepower work for you. Strong dual tube construction and a host of high-strength features ensure UMI-240331 will survive street use, drag strip blasts and autocross action. The K-member is fabricated ftom CNC machined 3/16 inch thick mild steel held together by a strong dual tube lower section. Included fabricated motor mounts are used to bolt any LSX engine to the precision machined mounting pads while both factory and aftermarket suspension is located by strong boxed mounting points. Lightening holes are CNC machined into the mounting plates and the tubular construction provides added clearance for aftermarket exhaust. The K-member design permits stock spring and strut use while the lower a-arms feature a spring locating pocket. The lower a-arms feature TIG welded tubular construction, adjustable steering stops and polyurethane bushings. Street and track testing on our '89 IROC test car has shown this K-member and a-arm kit to be strong, reliable, and a great upgrade for your high performance ride. Manufactured with pride in Philipsburg, PA - USA.
Features:

• Reduces 25 lbs. of front end weight
• Allows easy installation of any LSX engine
• LSX adapter mounts work with factory rubber LS motor mounts, polyurethane mounts or UMI's solid mounts, UMI-2323
• Accepts factory springs and lowering springs
• Includes new grade 10.9 mounting hardware
• Double tube construction for superior strength
• Strong 3/16 in. thick mild steel engine and suspension mounts held together with 1-1/2 in. dia DOM tubing
• CNC machined and jig-built for no hassle installation
• MIG and TIG welded
• Direct bolt-in design
• Lower a-arms are jig-built with polyurethane bushings installed
• Durable red or black powder coat
• Modular design allows use of coilovers and/or LS mounts for minimal cost
• Manufactured with pride in Philipsburg, PA - USA

Manufacturer Part Number : 240331-B
