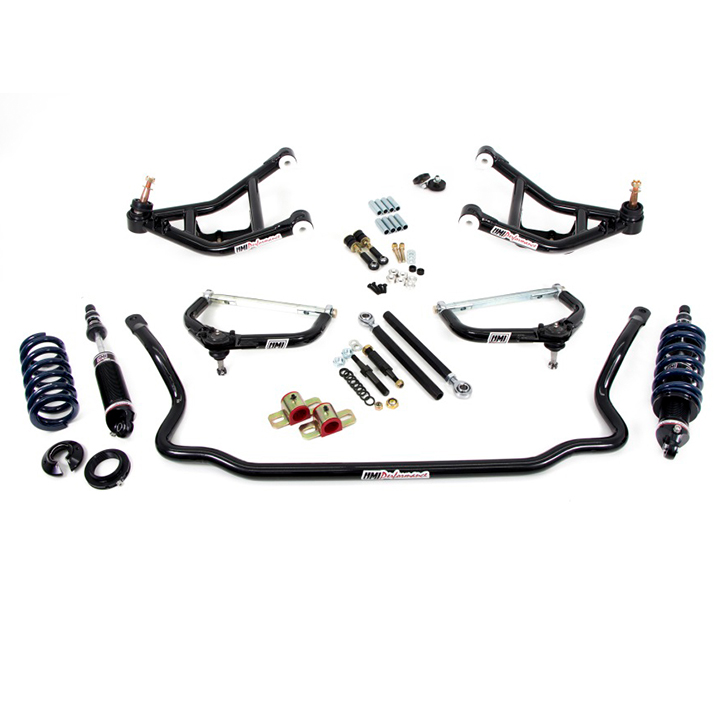

1970-1981 Camaro UMI Corner Max Kit, Race & Street Handling - Black 266501-B

UMI's Corner Max front end kits for 1970-1981 Camaro are a comprehensive system with our best corner carving parts under one easy to find part number. The Corner Max system combines geometry corrected a-arms with tall ball joints, higher rate springs, UMI rebound adjustable monotube shocks, heavy duty sway bar and a bump steer kit. The foundation of the kit includes our coilover-only lower a-arms featuring caster improvement, tall ball joints, and the ability to remove the spring and shock without taking the spindle apart. The upper a-arm features rod ends for smooth operation and the ability to adjust without shims. The 1-5/16th inch sway bar upgrade complete with UMI's fabricated end links reduces body roll and helps speed transitions. Racing coilover springs are paired with UMI's rebound adjustable coilover monotube shocks. Fine tuning is accomplished with a UMI bump steer kit. The Corner Max kit is built to make the stock GM clip work as well as it possibly can with a true bolt-on kit. All UMI Performance parts are fabricated and raced with pride out of Philipsburg, PA - USA. Race proven on many 2nd generation F-Bodies across the country.
Features:

• Exceptional handling at 1 to 2-1/2 inch lowering.
• Uses factory GM spindle and lowering spindles that equal factory height.
• Up to 10 degrees static caster without moving the spindle pin.
• Up to 1.2 degrees per inch camber gain.
• 3/4 inch tall lower and standard upper ball joints.
• Easily change shocks and springs at the track with UMI's unique quick change system.
• 850 lb/in race proven spring rates for exceptional handling.
• UMI rebound adjustable monotube shock with road race valving, 40 clicks of adjustment.
• 1-5/16 inch solid sway bar with swivel end links to balance kit properly.
• Bump steer kit for fine tuning.
• Thrust bearings and adjusting wrench included for easy height changes.
• Raced and tested on UMI equipped 2nd generation F-bodies across the country.
• All UMI Suspension components are designed and manufactured in the USA.

Manufacturer Part Number : 266501-B

Part Notes:

If kit is used on a 1970-71 Camaro, the center link and inner tie rods must be used from a 1972-81 Camaro for the correct bump steer fitment.
