1967 Nova Parts and Restoration Information

1967 nova

The 1967 Nova was the last year in the second generation of Chevrolet’s X-body platform.

Even though the body and mechanics stayed the same, many safety improvements were made to the 1967 Chevy Nova to keep in line with Government-mandated automobile safety regulations. This included an energy-absorbing steering column and safety steering wheel, soft interior parts (armrests, sun visors, and dash pads), redesigned instrument panel knobs, and front shoulder seat belt anchors.

The SuperSport model also saw some changes with a new black grille and SuperSport wheel covers. While the Nova underwent slight changes it saw a major sales drop as the newly released Chevy Camaro stole Nova’s spotlight as the new American muscle car.

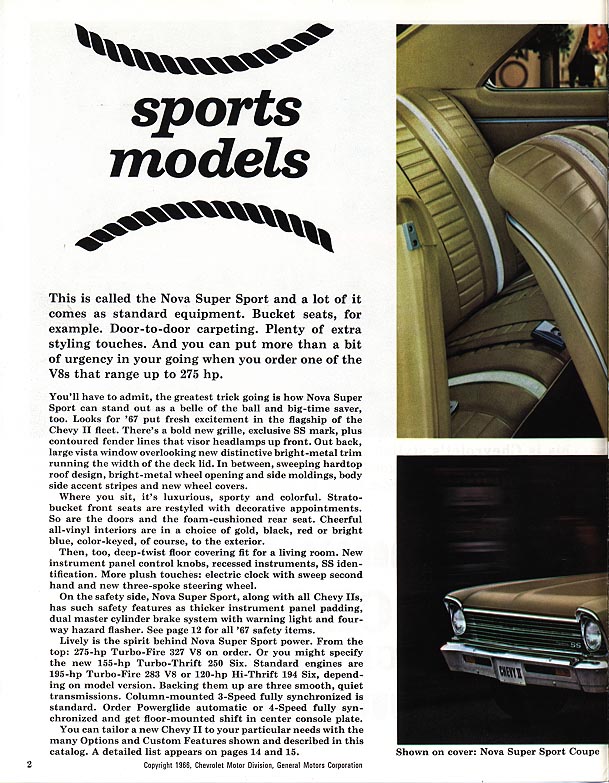

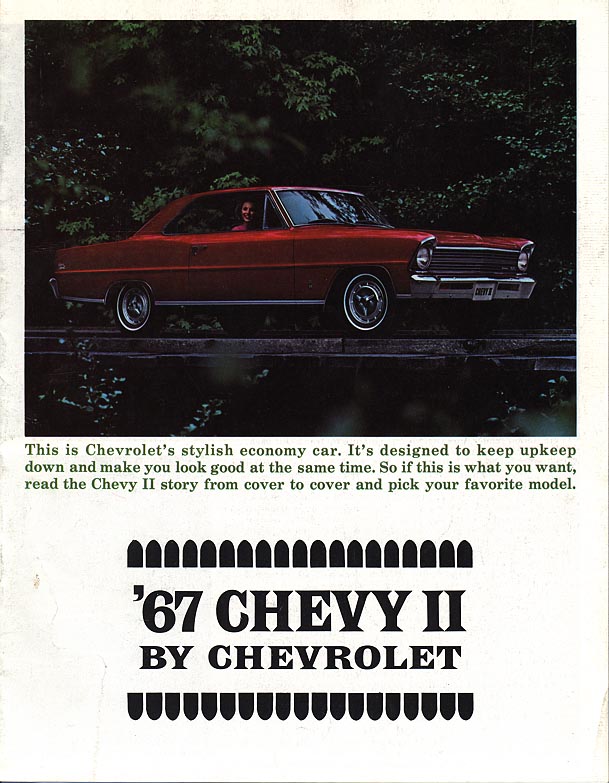

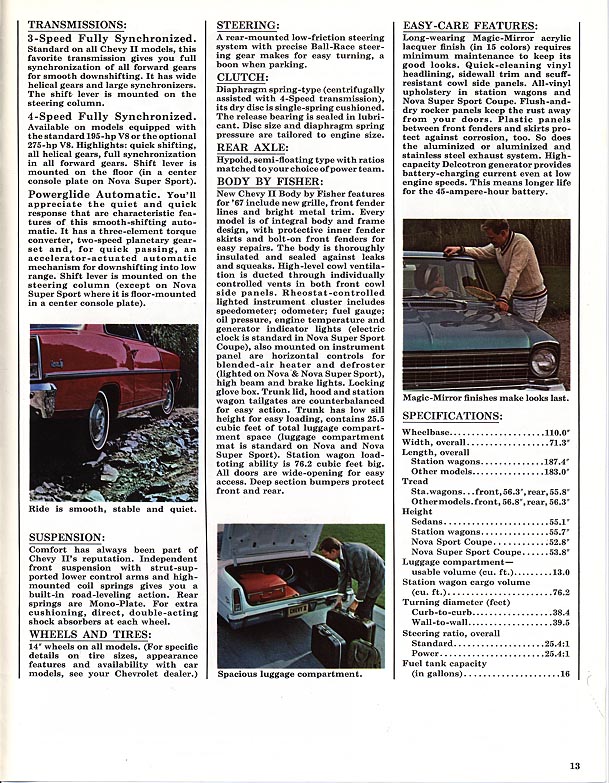

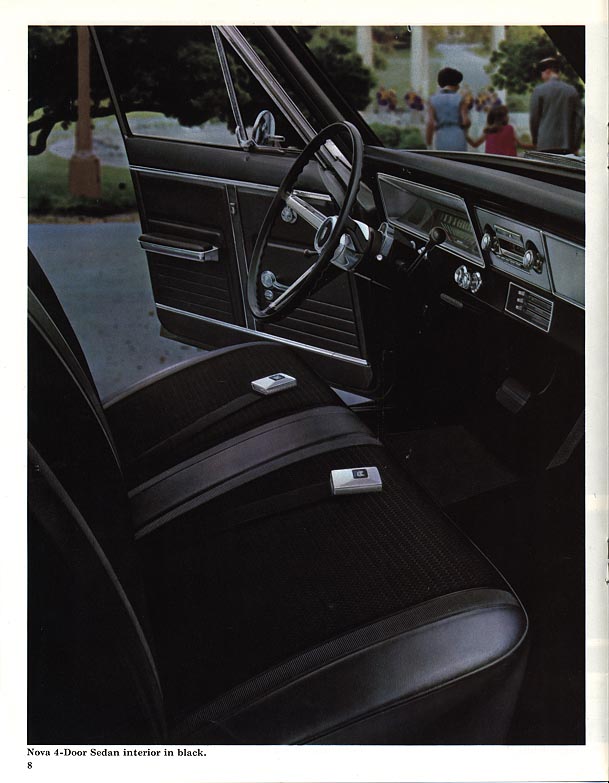

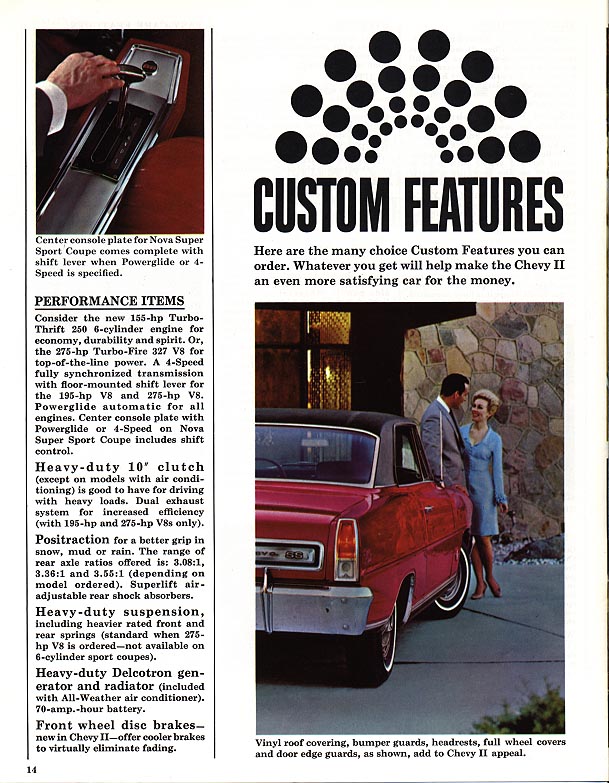

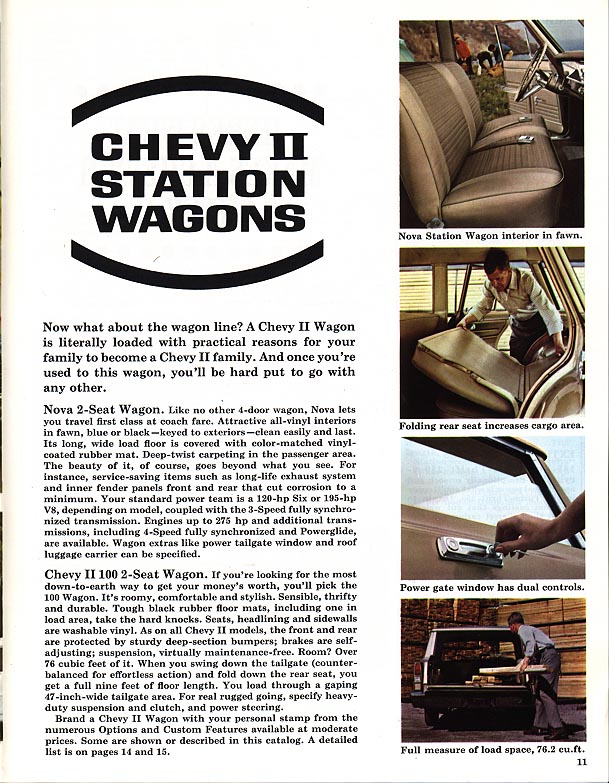

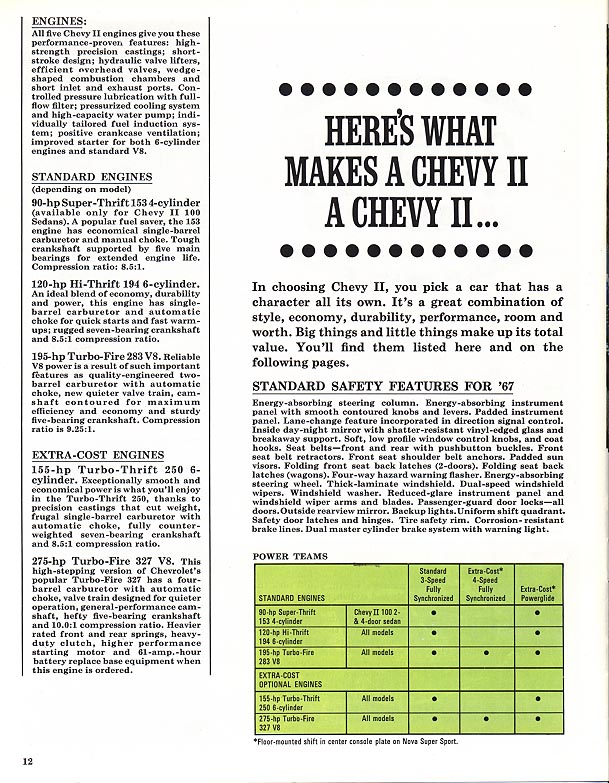

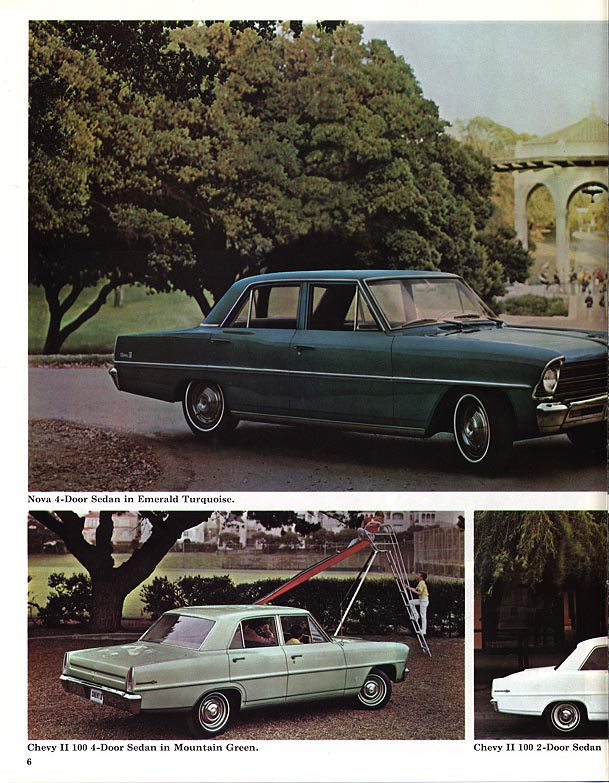

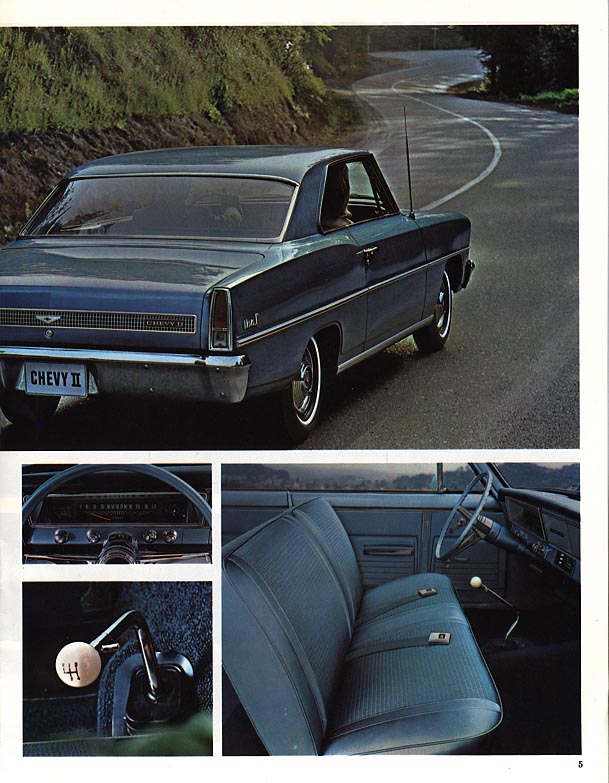

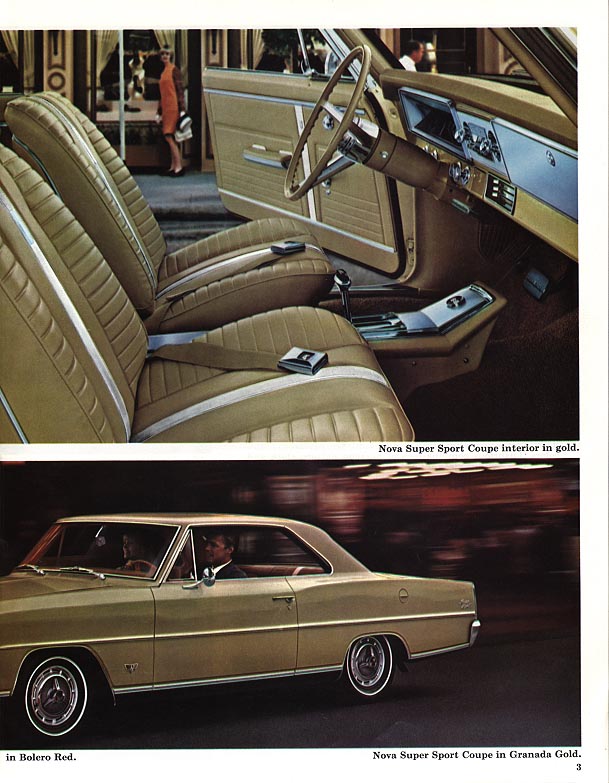

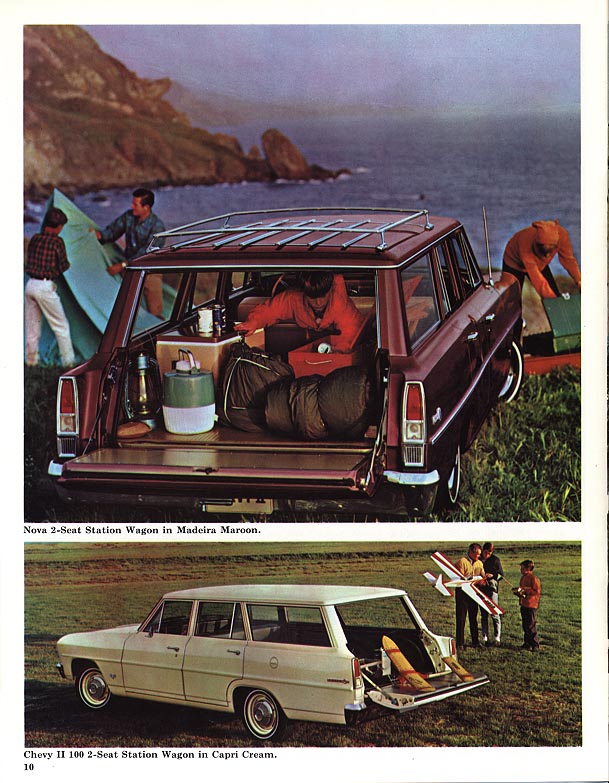

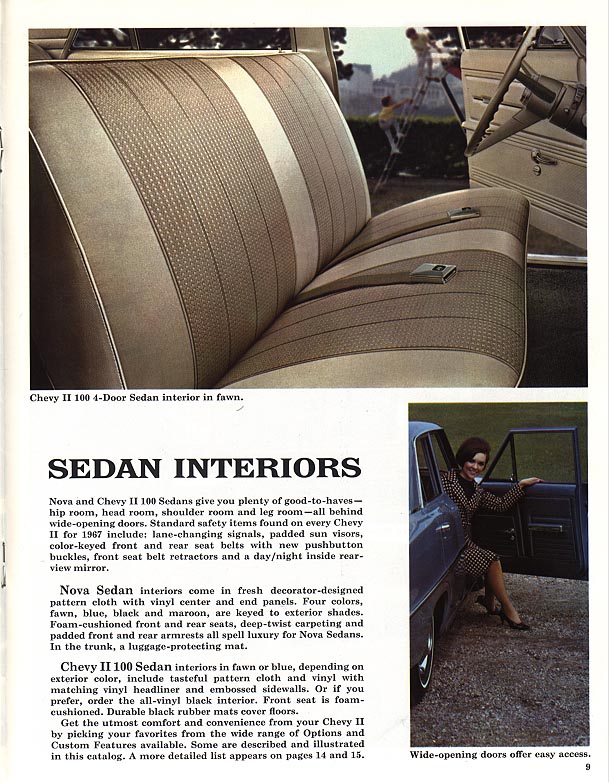

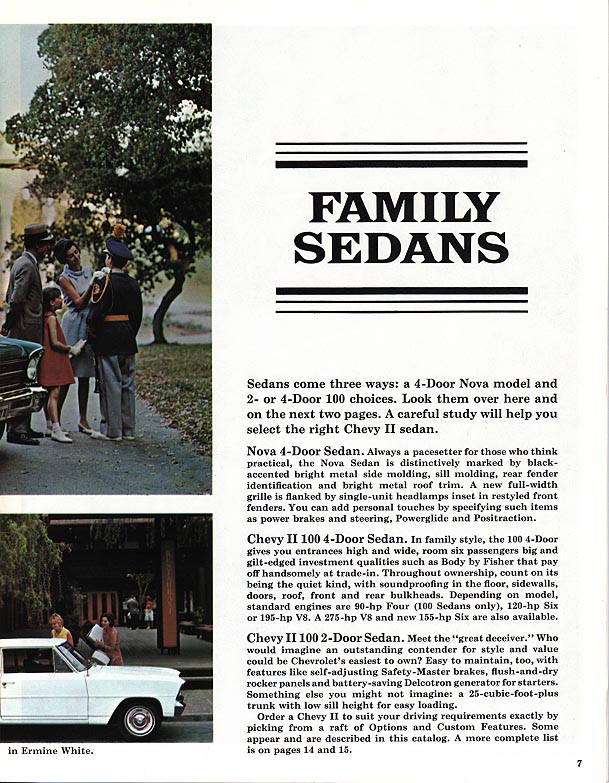

1967 Chevy 2 Nova Advertisements & Brochure


1967 Nova Model Options:

 Body Styles & Model Options:
  • 4-Door Wagon
  • Hardtop Coupe
  • 4-Door Sedan
  • SuperSport
 Engine Options:
  • Super-Thrift 153 | 153ci | 90hp I4
  • Hi-Thrift 194 | 194ci | 120hp L6
  • L22 – Turbo-Thrift 250 | 250ci | 155hp L6
  • L32 – Turbo-Fire 283 | 283ci | 195hp V8
  • L30 – Turbo-Fire 327 | 327ci | 275hp V8
  • L79 – Turbo-Fire 327 | 327ci | 325hp V8
 Available Transmissions:
  • Powerglide
  • 4-Speed Manual
  • 3-Speed
 Production Numbers:
  • Chevy II / Nova: 106,430
    • 2-Door Coupe: N/A
    • 2-Door Convertible: 0
    • 2-Door Sedan: N/A
    • 4-Door Sedan: N/A
    • 4-Door Wagon: 12,900
    • SuperSport: 10,069
 Dimensions & Capacities:
  • Length:
    • 2 & 4-Door Sedan: 183.0 in / 15.25 ft
    • 2-Door Coupe & Super Sport: 183.0 in / 15.25 ft
    • Wagon: 187.4 in / 15.61 ft
  • Width: 71.3 in / 5.91 ft
  • Height:
    • 2 & 4-Door Sedan: 55 in / 4.58 ft
    • 2-Door Coupe: 52.8 in / 4.4 ft
    • 2-Door Super Sport: 53.8 in / 4.48 ft
    • Wagon: 55 in / 4.58 ft
  • Wheelbase: 110 in / 9.16 ft

1967 Nova Engine Codes & Specs

Available Engine Specifications

Type

Size

Carb

RPO

Horsepower

Torque

Bore & Stroke (in)Compression Ratio

L4

153ci

1x1bbl

-

90 hp @ 4000 RPM

152 lb-ft @ 2400 RPM

3.875 x 3.258.5:1

L6

194ci

1x1bbl

-

120 hp @ 4400 RPM

177 lb-ft @ 2400 RPM

3.563 x 3.258.5:1

L6

250ci

1x1bbl

L22

155 hp @ 4200 RPM

235 lb-ft @ 1600 RPM

3.875 x 3.538.5:1

V8

283ci

1x2bbl

L32

195 hp @ 4600 RPM

285 lb-ft @ 2400 RPM

3.875 x 3.009.25:1

V8

327ci

1x4bbl

L30

275 hp @ 4800 RPM

355 lb-ft @ 3200 RPM

4.001 x 3.2510.0:1

V8

327ci

1x4bbl

L79

325 hp @ 5800 RPM

360 lb-ft @ 3600 RPM

4.001 x 3.2511.0:1
4 Cylinder Engine Codes
Code

Size / Carb

HP / RPO

Transmission

Notes

153

OA

153 cid 1x1bbl

90 hp

3-Speed Manual

-

OC

153 cid 1x1bbl

90 hp

3-Speed Manual

Heavy Duty Clutch

OH

153 cid 1x1bbl

90 hp

Powerglide

-

6 Cylinder Engine Codes
Code

Size / Carb

HP / RPO

Transmission

Notes

194

OK

194 cid 1x1bbl

120 hp

3-Speed Manual

-

OM

194 cid 1x1bbl

120 hp

3-Speed Manual

Heavy Duty Clutch

OR

194 cid 1x1bbl

120 hp

Powerglide

-

ZX

194 cid 1x1bbl

120 hp

Powerglide

A.I.R.

ZY

194 cid 1x1bbl

120 hp

3-Speed Manual

A.I.R.

250

PC

250 cid 1x1bbl

155 hp L22

3-Speed Manual

A.I.R.

PI

250 cid 1x1bbl

155 hp L22

Powerglide

A.I.R.

PV

250 cid 1x1bbl

155 hp L22

3-Speed Manual

-

PX

250 cid 1x1bbl

155 hp L22

Powerglide

-

8 Cylinder Engine Codes
Code

Size / Carb

HP / RPO

Transmission

Notes

283

PD

283 cid 1x2bbl

195 hp L32

3-Speed Manual

-

PE

283 cid 1x2bbl

195 hp L32

3-Speed Manual

A.I.R.

PF

283 cid 1x2bbl

195 hp L32

3-Speed Manual

Air Conditioning

PL

283 cid 1x2bbl

195 hp L32

4-Speed Manual

-

PM

283 cid 1x2bbl

195 hp L32

4-Speed Manual

Air Conditioning

PN

283 cid 1x2bbl

195 hp L32

Powerglide

-

PP

283 cid 1x2bbl

195 hp L32

Powerglide

Air Conditioning

PQ

283 cid 1x2bbl

195 hp L32

4-Speed Manual

A.I.R.

PU

283 cid 1x2bbl

195 hp L32

Powerglide

A.I.R.

327

ZA

327 cid 1x4bbl

275 hp L30

Manual

-

ZB

327 cid 1x4bbl

275 hp L30

Manual

A.I.R.

ZD

327 cid 1x4bbl

275 hp L30

Powerglide

A.I.R.

ZE

327 cid 1x4bbl

275 hp L30

Manual

Air Conditioning

ZG

327 cid 1x4bbl

325 hp L79

Manual

A.I.R. - Special High Performance

ZH

327 cid 1x4bbl

325 hp L79

Manual

Air Conditioning & A.I.R. - Special High Performance

ZI

327 cid 1x4bbl

325 hp L79

Manual

Special High Performance

ZJ

327 cid 1x4bbl

325 hp L79

Manual

Air Conditioning - Special High Performance

ZK

327 cid 1x4bbl

275 hp L30

Powerglide

-

ZM

327 cid 1x4bbl

275 hp L30

Powerglide

Air Conditioning

1967 Nova Rear Axle Codes

CodeAxle Ratio

Notes

BA

3.08:1

Open 10-bolt

BC

3.36:1

Open 10-bolt

BE

3.08:1

Positraction 10-bolt

BF

3.36:1

Positraction 10-bolt

BG

3.55:1

Positraction 10-bolt

BH

3.55:1

Open

BQ

3.31:1

Open 12-bolt (327 Special High Performance w/ AC)

BR

3.07:1

Positraction 12-bolt

BS

3.31:1

Positraction 12-bolt

BT

3.07:1

Open 12-bolt (Metallic Brakes)

BU

3.07:1

Positraction 12-bolt (Metallic Brakes)

BV

3.31:1

Open 12-bolt (Metallic Brakes)

BW

3.31:1

Positraction 12-bolt (Metallic Brakes)

FI

3.55:1

Open 12-bolt (Close Ratio 4-speed)

FJ

3.55:1

Open 12-bolt (Metallic Brakes)

FK

3.55:1

Positraction 12-bolt (Metallic Brakes)

FL

3.55:1

Positraction 12-bolt

FM

3.73:1

Open

FN

3.73:1

Open (Metallic Brakes)

FO

3.73:1

Positraction (Metallic Brakes)

FP

3.73:1

Positraction

FQ

3.07:1

Open 12-bolt (327 Special High Performance)

1967 Nova Factory Options

Regular Production Option (RPO)

RPODescriptionUnits
AL5Rear center seat belt - deluxe499
AS1Shoulder harness - standard198
A01Tinted Glass - all windows8,657
A02Tinted Glass - windshield only38,087
A33Power tailgate window2,828
A39Front & rear seat belts - custom14,426
A68Rear center seat belt - standard6,072
A81Head rest - Astro type seat198
A82Head rest - conventional seat164
A85Shoulder harness - deluxe182
B37Floor mats5,474
B55Deluxe front seat cushion1,259
B93Door edge guards9,604
C08Exterior soft trim roof cover4,370
C48Heater delete3,901
C50Rear window defroster1,146
C60Air Conditioning - deluxe6,448
D33Outside mirror - remote control1,039
F40Special heavy duty front & rear suspension5,502
G76Rear axle - 3.36 ratio380
G80Rear axle - Positraction7,221
G92Rear axle - 3.08 ratio26
G96Rear axle - 3.55 ratio2,051
H05Rear axle - 3.73 ratio1
J50Vacuum power brake equipment1,799
J52Disc brakes - front565
K19Air Injection reactor (A.I.R.)9,427
K24Closed engine positive ventilation9,697
K76A/C generator - 61 amp229
K79A/C generator - 42 amp880
L22L6 engine - 25032,619
L30V8 engine - 3276,175
L79V8 engine - 327 Special Hi-performance6
M01Heavy duty clutch292
M204-speed manual transmission6,058
M214-speed manual transmission - close ratio2
M35Powerglide transmission72,961
N10Dual exhaust equipment2,910
N30Deluxe steering wheel2,558
N34Steering wheel - wood-grained plastic386
N40Power steering22,081
N96Simulated magnesium wheel trim cover416
P01Wheel trim cover34,822
P02Simulated wire wheel cover389
P676.95-14-4 whitewall tires47,133
T116.95-14-8 whitewall tires4,794
T60Heavy duty battery4,186
U15Speed warning indicator415
U25Luggage compartment lamp3,766
U26Underhood lamp3,772
U27Glove compartment lamp1,088
U28Ash tray lamp4,213
U29Instrument panel courtesy lights4,780
U35Electric clock2,293
U63Radio - AM push button63,489
U73Manual rear antenna6,152
U80Auxiliary speaker4,280
V01Heavy duty radiator4,899
V31Front bumper guard equipment3,490
V32Rear bumper guard equipment3,052
V55Luggage carrier equipment1,903
Z03Super sport10,069
791trim - vinyl coated28,670
950Color combination - two-tone5,06

1967 Nova Cowl Tag Information

1967 Nova Example Cowl Tag & Breakdown
1967 nova

The Cowl Trim Tag, located on the cowl area identifies significant information about your car.

Click here for further cowl tag decoding information

Line 1: Build Month and Week, Interior Sheetmetal Color

Month

Week

Sheetmetal Color

01 = January

A = First Week

1 = Blue

02 = February

B = Second Week

3 = Red

03 = March

C = Third Week

4 = Black

04 = April

D = Fourth Week

5 = Fawn

05 = May

E = Fifth Week

6 = Bright Blue

06 = June

7 = Gold

07 = July

8 = Maroon

08 = August

09 = September

10 = October

11 = November

12 = December

Line 2: Year, GM Division, Model & Body, Assembly Plant, Sequence Number

Year

GM Division

Model Series

Body Code

Assembly Plant

Sequence Number

67 = 1967

1 = Chevrolet

11 = Chevy II 100, L4

11 = 2-Door Sedan

WRN = Willow Run, MI

Starts at 100001

13 = Chevy II 100, L6

35 = 4-Door Wagon

14 = Chevy II 100, V8

37 = 2-Door Coupe

15 = Chevy II 400, Nova, L6

69 = 4-Door Sedan

16 = Chevy II 400, Nova, V8

17 = Chevy II Nova SS, L6

18 = Chevy II Nova SS, V8

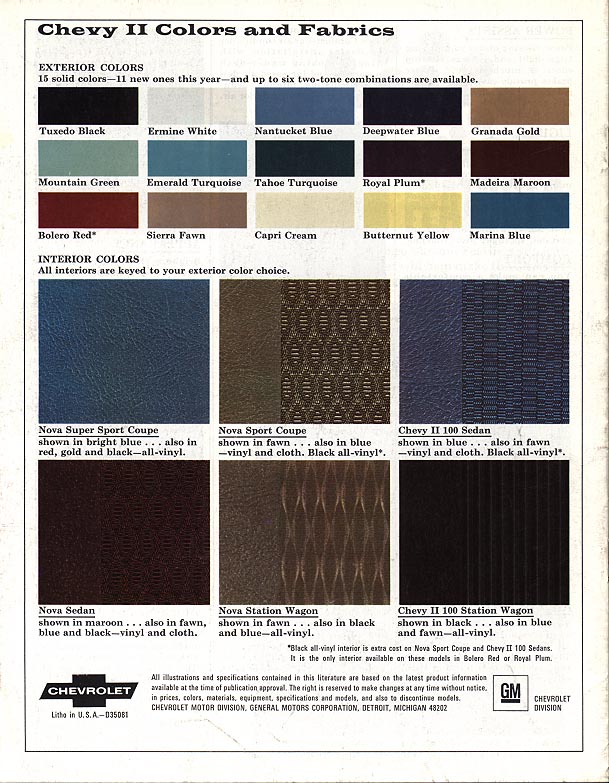

Line 3: Trim and Paint

Interior Trim

Exterior Paint (Lower/Upper)

733 = Blue Standard

A = Tuxedo Black

734 = Blue Deluxe

C = Ermine White

735 = Blue Standard

D = Nantucket Blue

736 = Blue Deluxe

E = Deep Water Blue

737 = Blue Buckets

F = Marina Blue

749 = Red Buckets

G = Granada Gold

754 = Maroon Standard

H = Mountain Green

771 = Fawn Standard

K = Emerald Turquoise

772 = Fawn Deluxe

L = Tahoe Turquoise

773 = Fawn Standard

M = Royal Plum

774 = Fawn Deluxe

N = Madeira Maroon

780 = Black Buckets

R = Bolero Red

781 = Gold Buckets

S = Sierra Fawn

785 = Black Deluxe

T = Capri Cream

786 = Black Standard

Y = Butternut Yellow

791 = Black Deluxe

1 = Parchment Vinyl Roof

2 = Black Vinyl Roof

Line 4: Selected Options

1st Group

2nd Group

3rd Group

4th Group

5th Group

E = A01 Tinted Glass (all)

H = C48 Heater Delete

B = C50 Rear Window Defogger

F = Z01/Z13 Comfort and Convenience Package

L = Seat Belts

G = A33 Power Tailgate (wagon)

K = C60 Air Conditioning

C = B70 Padded Dash

O = Exterior Chrome Passenger Mirror

W = A02 Tinted Windshield

L = 4-Speed Transmission

D = Special Lighting Group

W = Passenger Side Exterior Mirror

M = M35 Powerglide Transmission

Z = J65 Metallic Brakes

Y = A49 Deluxe Seat Belts

P = U63 Push Button Radio

Z = Shoulder Belts

R = U80 Rear Seat Speaker

S = U73 Rear Antenna
