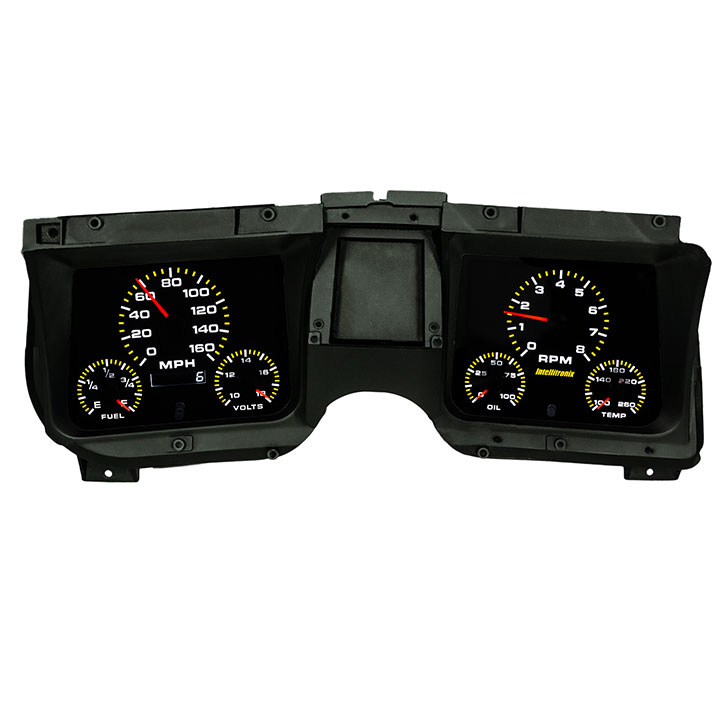

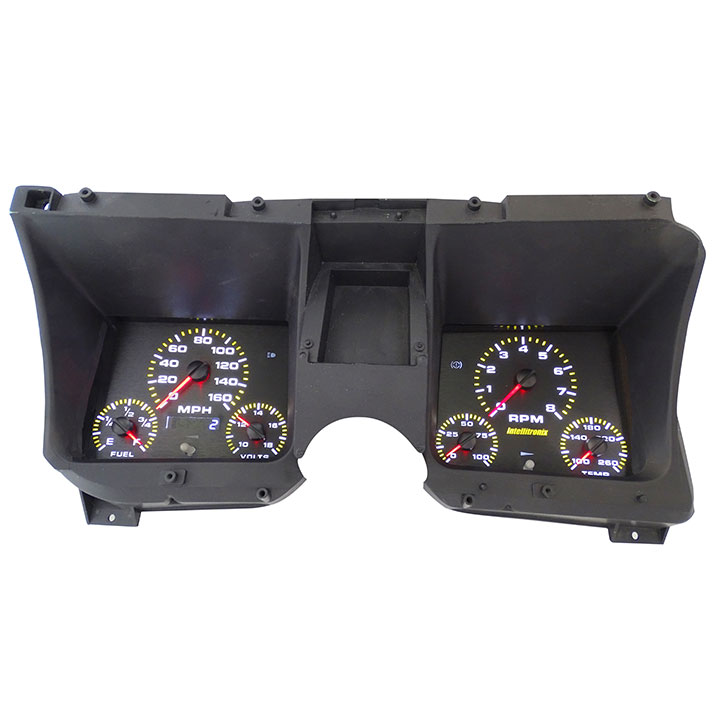

1968 Chevelle Analog Replacement Gauge Panel Black Faceplate AP5001

Enhance your classic 1968 Chevelle with the Intellitronix Analog Gauge Panel, featuring a sleek black polycarbonate subsurface with a brush stroke finish, creating a striking and unforgettable dash for your vehicle. This panel is a true masterpiece, seamlessly blending the classic charm of your Camaro/Firebird with modern technology. Designed for easy installation, it's a must-have for any Camaro enthusiast aiming to give their ride a contemporary touch.

The gauge panel includes essential features such as a speedometer, tachometer for 8-6-4 cylinder engines, fuel gauge, voltmeter, oil pressure gauge, and water temperature gauge. The speedometer can reach up to 160 MPH and offers convenient one-button calibration, accommodating different tire sizes, gear ratios, and transmissions. Additionally, it provides functions like odometer, trip meter, high-speed recall, 0-60 time, and _ mile elapsed time, all accessible with a simple push of a button.

The voltmeter displays voltage readings from 10.0 to 18.0 volts, while the oil pressure gauge measures from 0-100 psi. The tachometer covers a range from 0 to 8000 rpm and the water temperature gauge reads from 100-260ˇF. The fuel gauge is customizable to work with GM 0-30 & 0-90 ohms ranges. The panel also includes turn signal indicators and a high beam indicator for added convenience.

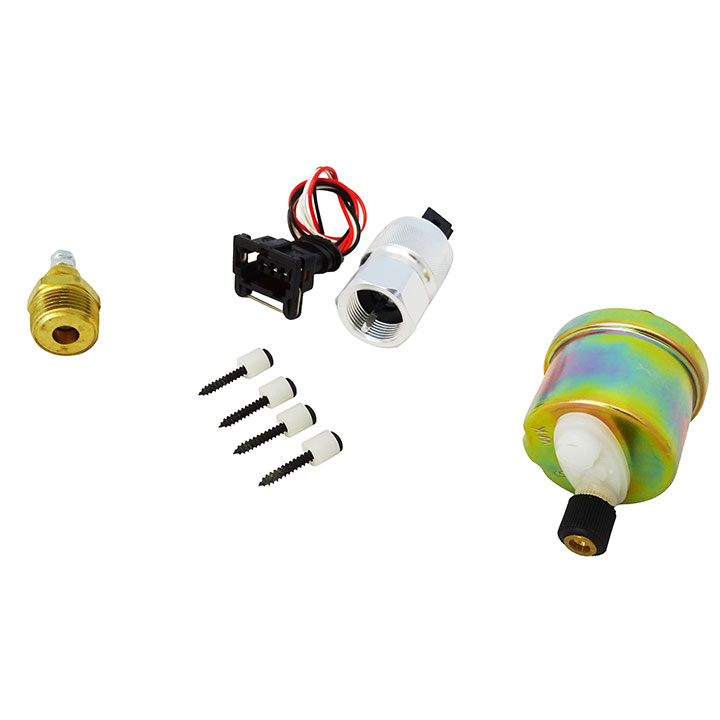

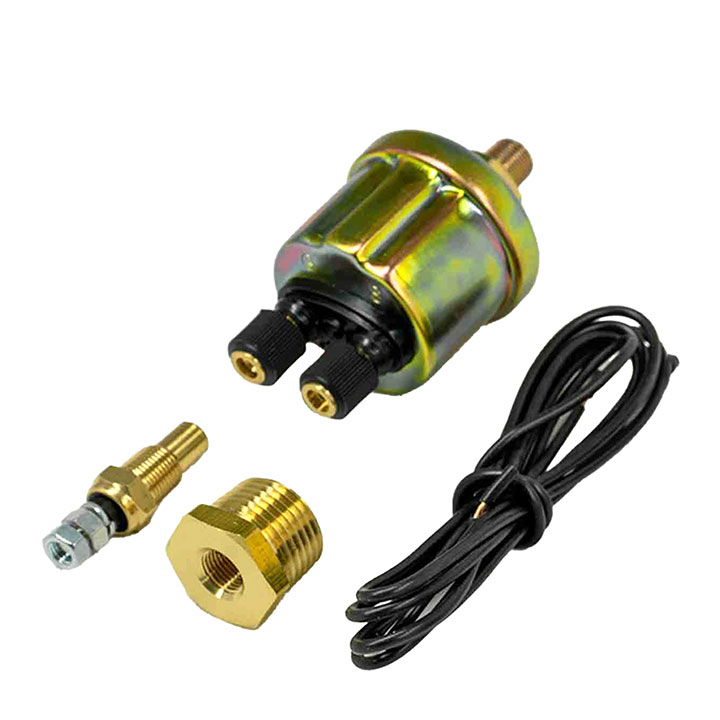

For installation ease, all necessary sending units, clear plexiglass, hardware, and detailed instructions are provided. The gauge panel is compatible with both mechanical and electronic transmissions. Alternatively, you can separately purchase a GPS speedometer sender from Intellitronix. Please note that installing the gauge cluster may disable the cruise control system.

For installation ease, all necessary sending units, clear plexiglass, hardware, and detailed instructions are provided. The gauge panel is compatible with both mechanical and electronic transmissions. Alternatively, you can separately purchase a GPS speedometer sender from Intellitronix. Please note that installing the gauge cluster may disable the cruise control system.

Enjoy a hassle-free installation, benefit from a lifetime warranty, and acquire high-quality gauges at an excellent price for your cherished classic vehicle.

Manufacturer Part Number : AP5001

Part Notes:

DASH BEZEL NOT INCLUDED, shown for display purposes only.
