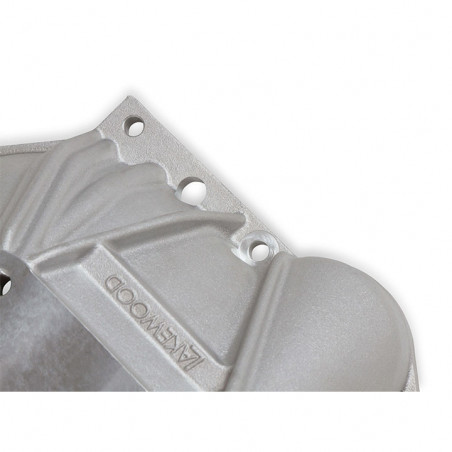

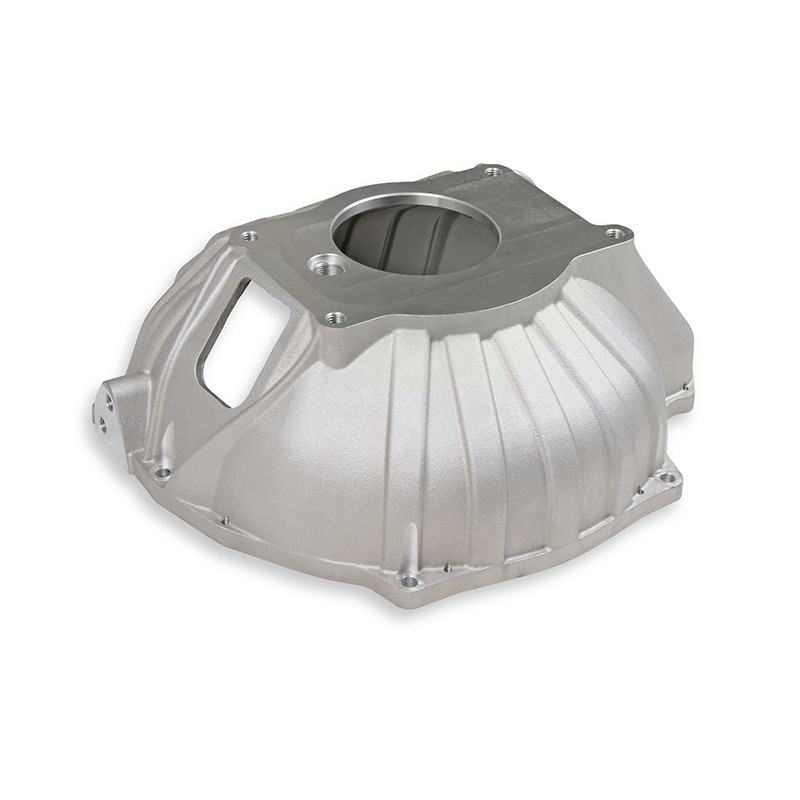

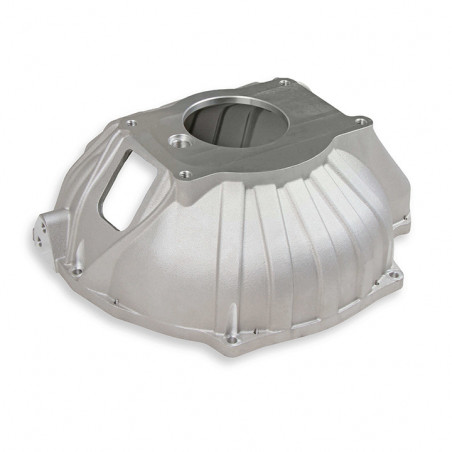

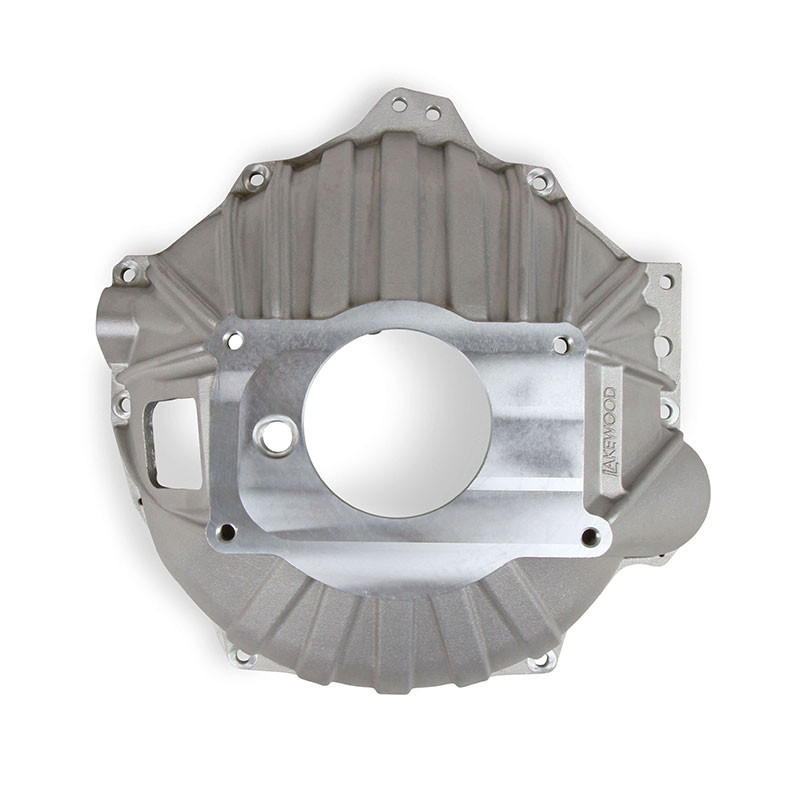

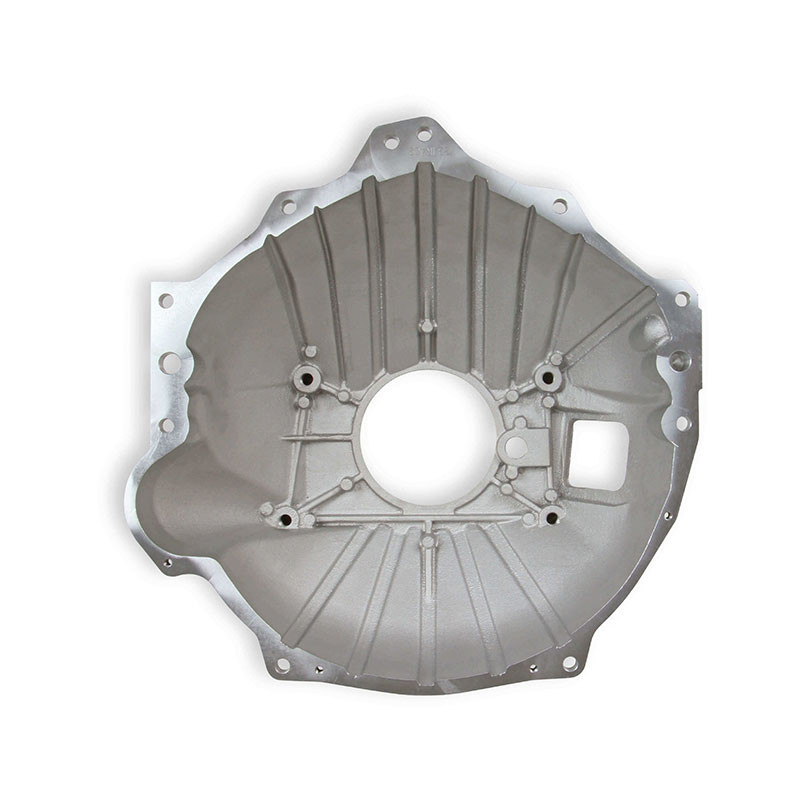

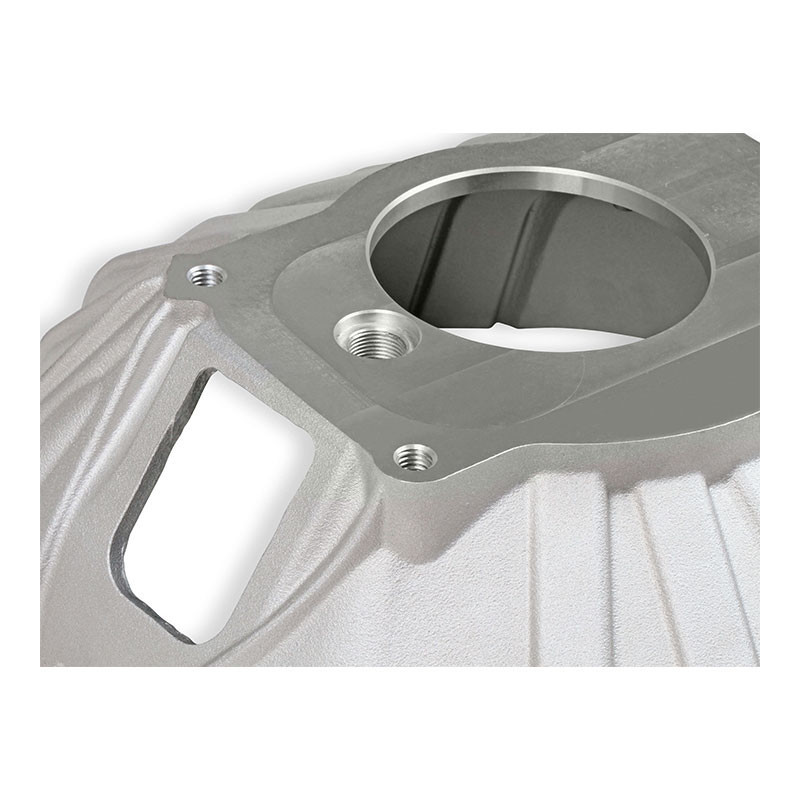

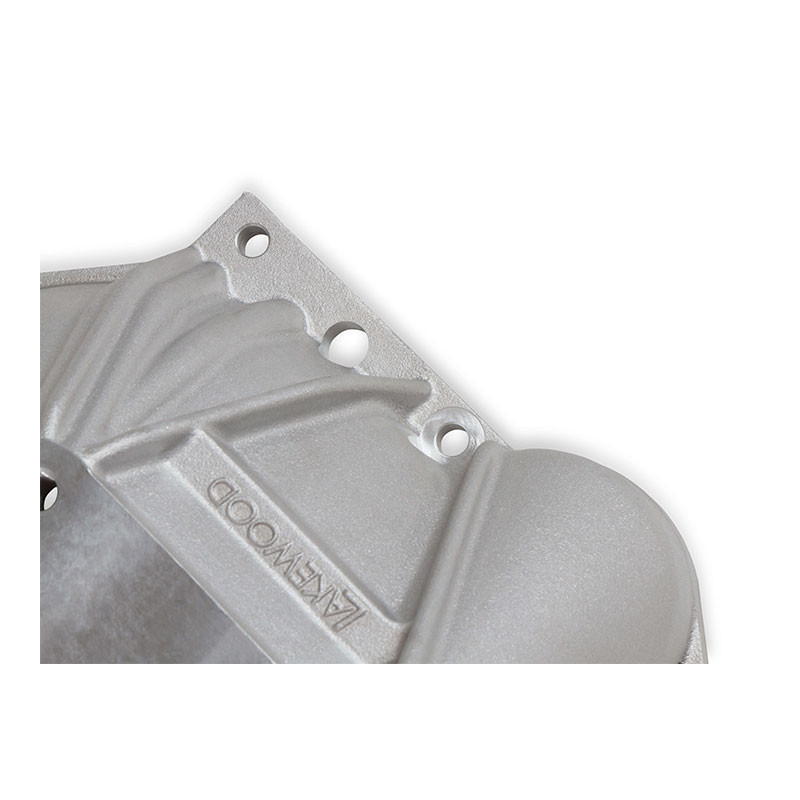

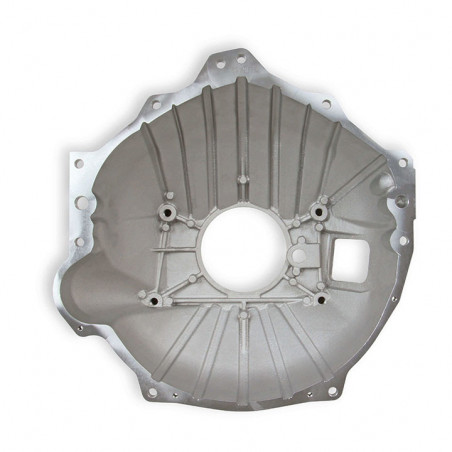

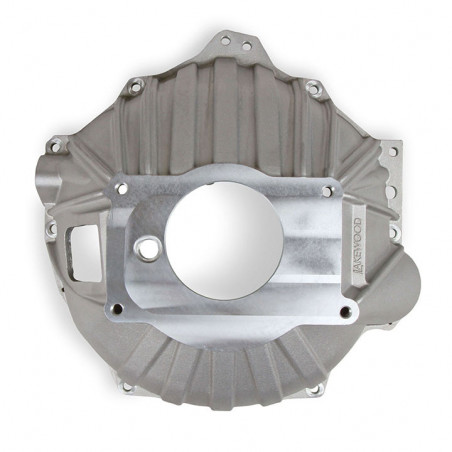

1964-1977 Chevelle Lakewood Cast Aluminum Bellhousing for Muncie, Saginaw, T10 and Tremec TKO LK4000

The Lakewood cast aluminum bellhousings connect Chevelle's with Chevy small, big block, and LS engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. The bellhousings are designed for both GM cars and trucks and other manufacturers where swap applications are being installed.

Features:

• Lightweight cast aluminum design similar to the original equipment bellhousings
• Lower cost non-SFI rated option if your project does not require the steel SFI rated unit
• Designed For Hydraulic and Mechanical Fork Throwout Bearing Linkage
• Bellhousing Depth: 6.45 in

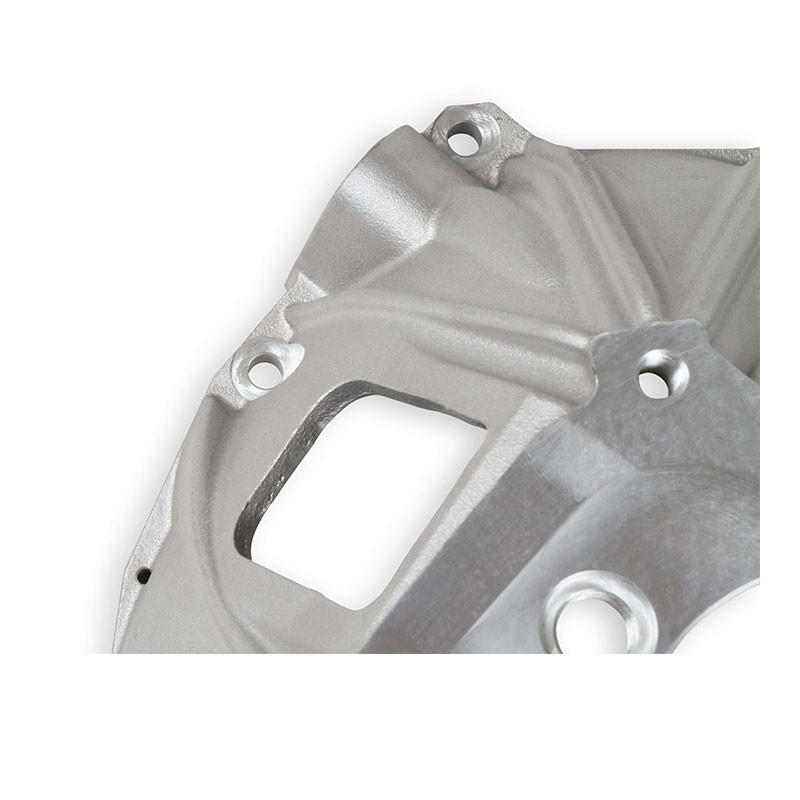

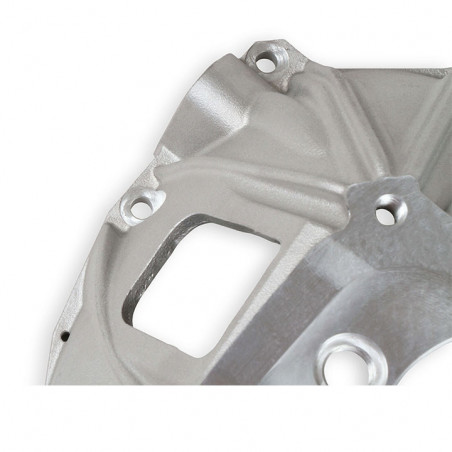

• Clutch Fork Opening: 2.125 In X 3.3 In

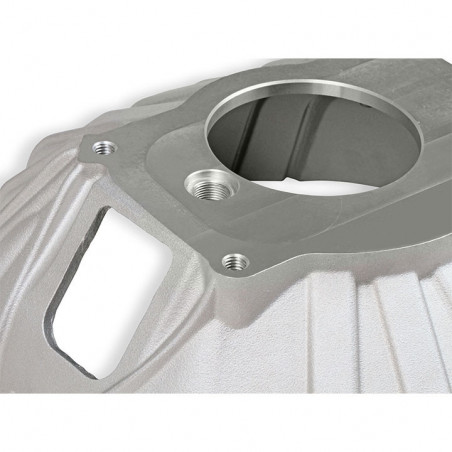

• Transmission Bore Diameter: 4.684 In
• No hardware included

Specs:

• Clutch Size: 11"
• Color: Cast
• Engine: Chevy Small Block V8, Big Block V8, Small Block Gen III/IV (LS Based)
• Flywheel: 153 or 168 Tooth
• Height: 6.45"
• Material: Aluminum
• Trans. Bore Diameter: 4.685"

Transmission Applications:

• Bert Racing
• Borg Warner
• Brinn Racing
• Falcon
• Jerico
• Muncie
• Richmond
• Saginaw
• T10
• T5
• TKO 500/600
• Tremec

Manufacturer Part Number : LK4000

Part Notes:

No hardware included
