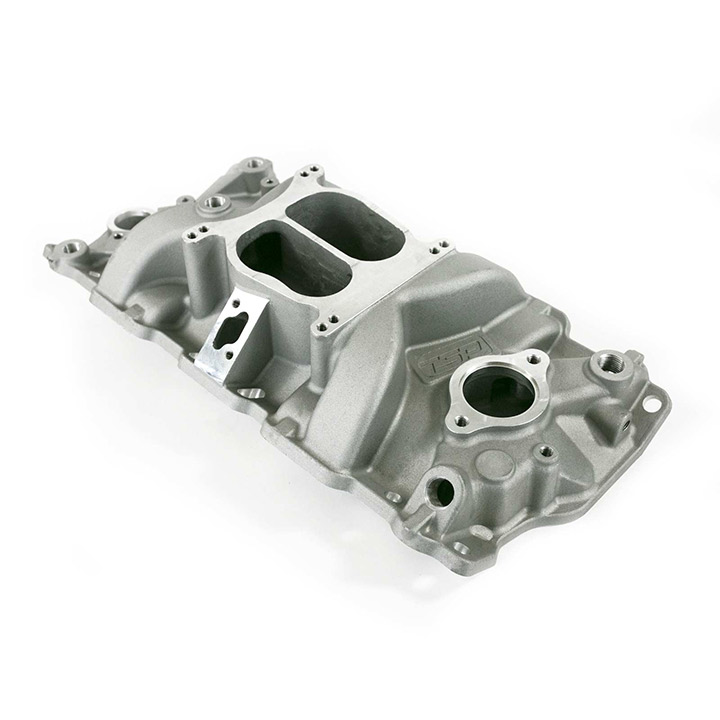

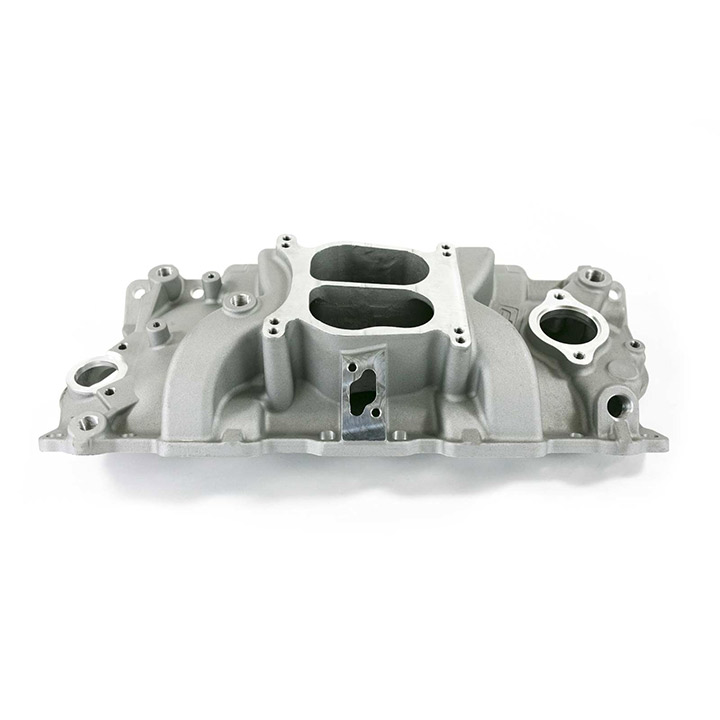

1964-1977 Chevelle Carbureted Small Block Dual Plane Aluminum Intake Manifold, Satin 82001

TSP's dual-plane high-performance intake manifold for the small block Chevy is ideal for street performance Chevelles. With a design that improves throttle response, as well as power and torque over a wide rpm range - idle to 5,500. It is cast from lightweight aluminum and features a low profile for ideal hood clearance. Additional provisions include dual distributor hold-downs, 4 corner water ports, and a choke block-off kit. Set up for spread bore carbs, this manifold comes with an adapter plate and gasket for use with square bore types.

Features and Specifications:

• Engine Block Style: OEM Standard Deck
• Carburetor Quantity: 1 (Not Included)
• Intake Style: Dual Plane
• Basic Operating Range: Idle to 5,500 RPM
• Manifold Height: 4.05"
• Manifold Material: Aluminum
• Manifold Finish: Satin
• EGR: No

Includes:

• Head Bolt Adapters
• Choke Block-off Kit
• Square Bore Adapter Kit

Manufacturer Part Number : 82001

Part Notes:

Fits 1955-1986 Chevy small blocks and 1987-1995 with included adapters. Manifold is stock replacement and street legal with non-EGR 302, 327, and 350 engines with OEM carb in 1966-1972 (and 1973 non-CA) passenger cars and 1966-1983 trucks. Will not fit engines with reverse flow heads such as those found in 1992-1997 LT1 applications.
