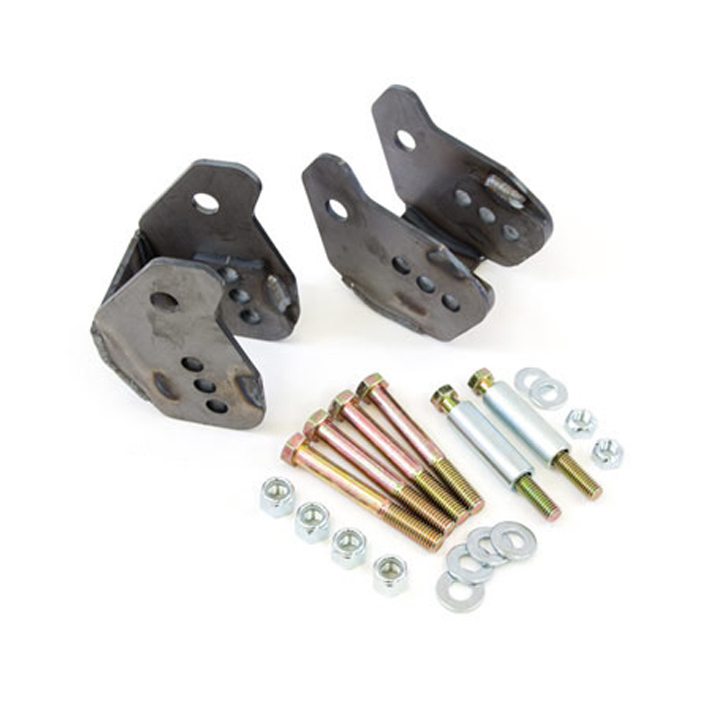

1964-1972 Chevelle UMI Rear Lower Control Arm Relocation Brackets, Weld In 4010

Wheel hop or traction issues? We have the solution! Optimize your Chevelle's instant center and improve forward traction by lowering the rear of the lower control arm 2, 2-3/4, or 3-1/4. These weld-in brackets are CAD designed to accommodate factory lower control arms as well as all popular aftermarket styles. Robust flanges inside the brackets add reinforcement and ensure factory bushings bolt right in. Brackets installed can provide an average 0.10 second (or better) 60-foot reduction and an overall improvement in launch consistency. Brackets are constructed of 3/16 mild steel and CNC laser cut for precision tolerances. Relocation brackets are designed to work on both lowered and non-lowered vehicles and feature multiple settings to optimize vehicle handling and traction.
Features:

• Works with factory height or lowered vehicles. Simply bolt-in & launch using your existing factory control arms.
• Multiple adjustment holes ideal to correct control arm angle on lowered vehicles while improving traction.
• Choose between 2 inch, 2-3/4 inch, or 3-1/4 inch drop to optimize vehicle handling and traction.
• Track testing shows an average of 0.10 second reduction in 60-foot times.
• CAD designed, CNC laser cut 3/16 in. mild steel.
• Adjustment holes follow natural arc of lower control arm for direct bolt-in.
• New grade 8 hardware included.
• Manufactured with pride in Philipsburg, PA - USA

Manufacturer Part Number : 4010

Part Notes:

UMI-4010 weld-in relocation brackets are designed for the factory 10-bolt and 12-bolt rear end housings. Installation takes approximately 1-2 hours and requires welding. Brackets are supplied bare metal for welding and include necessary hardware and installation instructions.
