1978-1988 Cutlass Holley Sniper EFI HyperSpark Ignition Coil 556-152

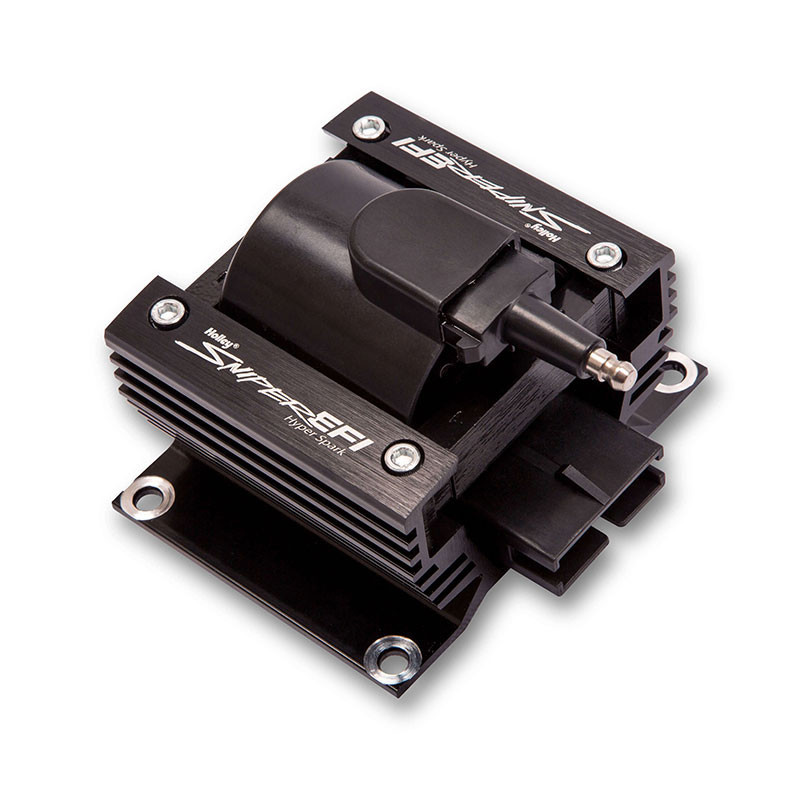

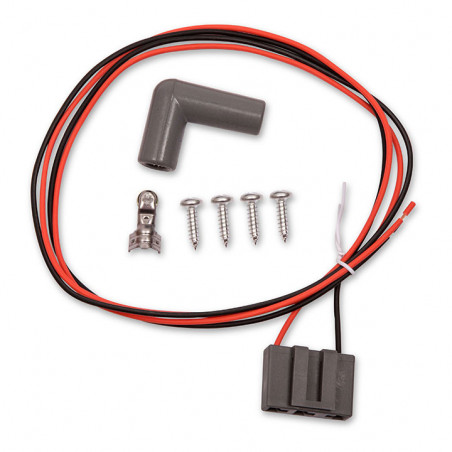

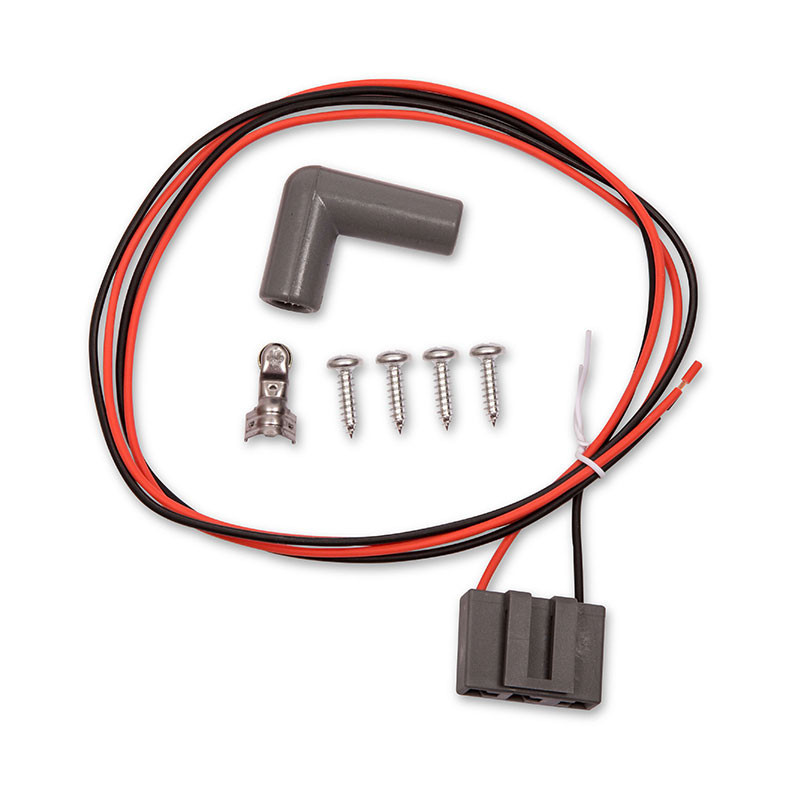

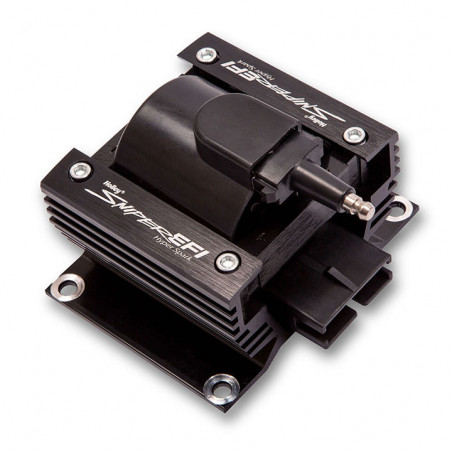

Do you need to upgrade your Cutlass ignition system due to a recent Sniper EFI installation, but have no idea which option is best? Introducing HyperSpark Ignition, from Sniper EFI. The complete system consists of a CD Ignition Box*, Billet distributor with Hall effect crank signal sensor*, an ignition coil, and complete wiring harness ready to plug and play with your Sniper EFI System. This high output ignition coil produces 135mJ of spark energy when used with the HyperSpark Ignition Box. The HyperSpark ignition coil comes self contained in it's own mounting bracket, with mounting hardware provided.
*Sold Separately

Features:

• Designed to work with Sniper EFI Đ Plug and Play
• Ignition coil connector removes any doubt of loose connections at the Ignition Coil.
• Integrated Ignition Coil bracket simplifies mounting the ignition coil.
• 135mJ of spark energy when used with the HyperSpark Ignition Box, ensures complete combustion

Specs:

• Brackets Included:Yes
• Finish:Black Anodized
• Hardware Included:Yes
• Peak Current:300 mA
• Primary Resistance:0.441 Ohms
• Secondary Resistance:4.61 Ohms
• Secondary Voltage:43,000 Volts
• Spark duration:335 uS
• Turns Ratio:78:1

Manufacturer Part Number : 556-152

Part Notes:

This ignition coil requires an ignition box. It is designed to be used with the HyperSpark CD Ignition box - Part Number HOL-556-151.Helpful Articles:

• Prepping for Fuel Injection
