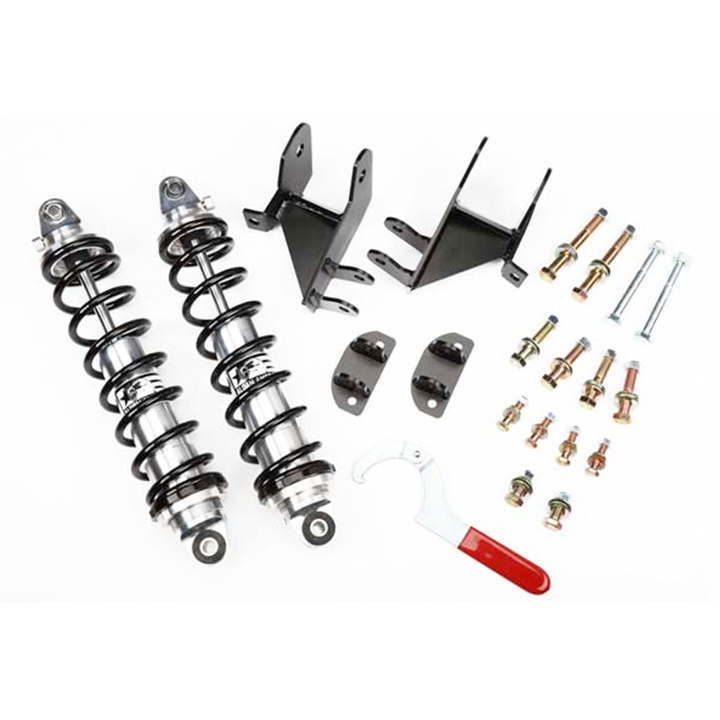

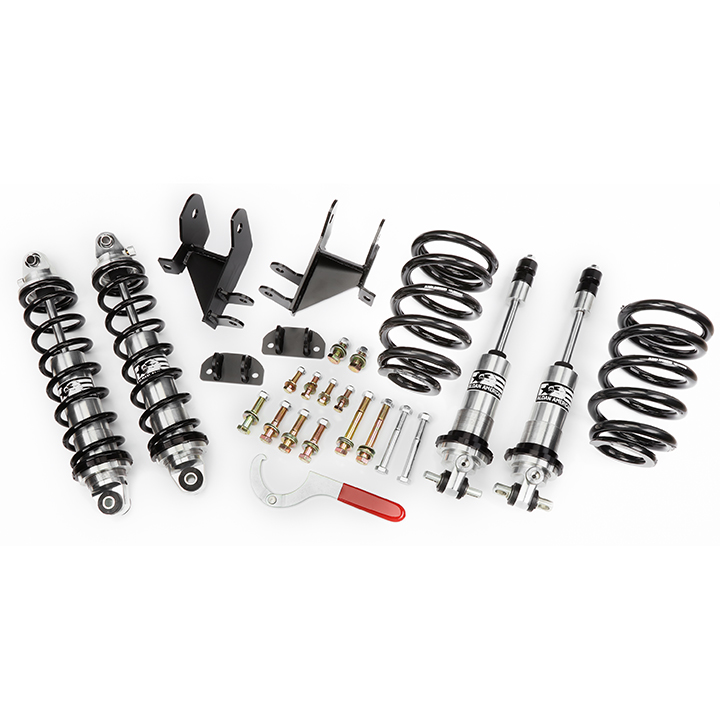

1964-1967 El Camino Aldan American Single Adjustable Full Coil-Over Kit, Small Block 300102

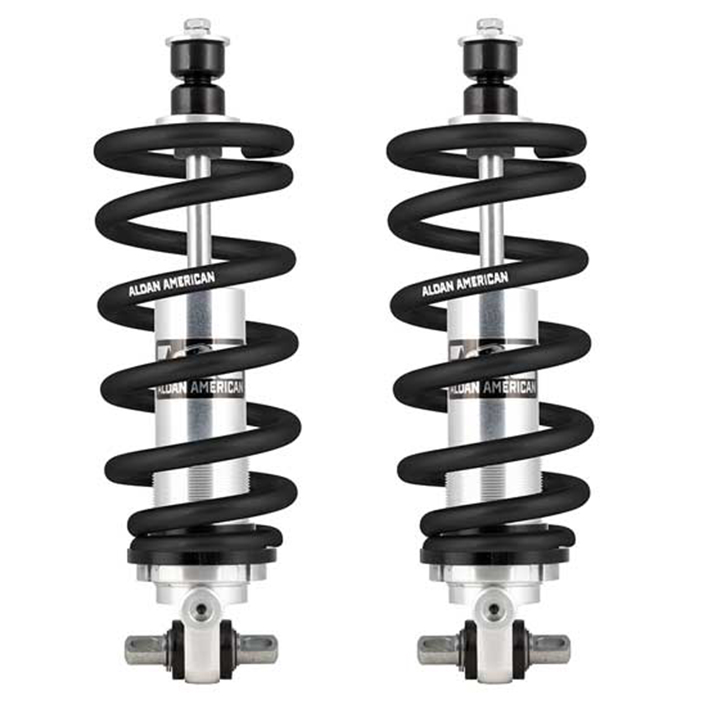

Convert your El Caminos front and rear suspension to fully ride-height adjustable coilovers. Aldan Phantom Series, single adjustable coilovers deliver superior handling and ride quality for a drastic improvement over stock suspension. Aldan's Hybrid front coil-springs are designed as a direct fit into the factory upper spring pockets. Aldan rear kits use factory rearend and shock mounts for precise fitment. Lowers 0.0 in.-2.0 in. front and 0.0-3.0 in. in the rear.

Specifications:

• Coilover Adjustment: Single Adjustable
• Coilover Kit Position: Front and Rear
• Suspension Ride Height: 0.0-2.0 in. lowered front, 0.0-3.0 lowered rear
• Uppermount/Lowermount: Stud/Bar Pin, Eyelet/Eyelet
• Spring Rate: 450 lbs./in. Front, 140 lbs./in. Rear
• Shock Body Finish: Natural
• Adj. Valving / Gas Charged: Yes
• # of Valving Selections: 6 Front, 11 Rear
• Adj. Mounting Bracket Incl.: No
• Hardware Included: Yes
• Bushing Material: Polyurethane
• Spring Finish: Black powdercoated

Manufacturer Part Number : 300102

Part Notes:

Aldan American’s coilover kits are hand-built in the USA for the replacement of your factory shocks and springs with improved handling and ride quality. Our coil-over kits are made with only the highest quality materials including high strength 6061-T6 aluminum, high tensile coil-springs, and nitrogen charged shocks.Helpful Articles:
