1964-1972 El Camino Ground Up Exclusive Basic Rotors Rear Disc Brake Conversion Kit Red Calipers AFXDCRD01R-GUPX

Upgrading your 1964-1972 El Camino to rear disc brakes is one of the easiest and most cost-effective things you can do for more driving enjoyment and increased safety. These classics had great performance and styling from the factory but left a lot to be desired in the braking department. Upgrade your outdated braking system today with this convenient Ground Up Exclusive four-wheel disc brake kit and cruise with peace of mind.

This rear disc brake conversion kit is complete with a rear brake kit infusing parking brake cables.

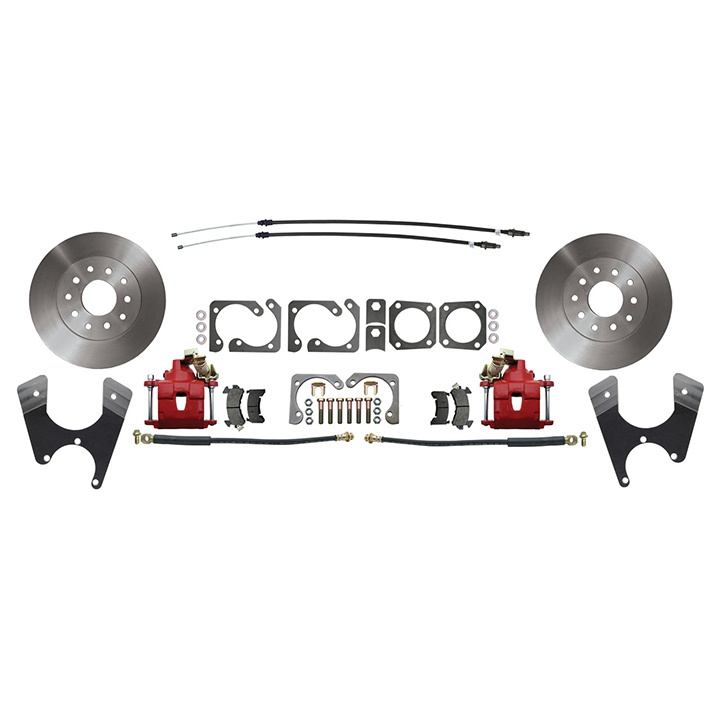

Kit Contains:

11 Inch Multi Pattern Rotors

Large GM Large Bore Single Piston Calipers w/ Self Adjusting E-Brake (1979 Cadillac El Dorado)

D54 Pads Included

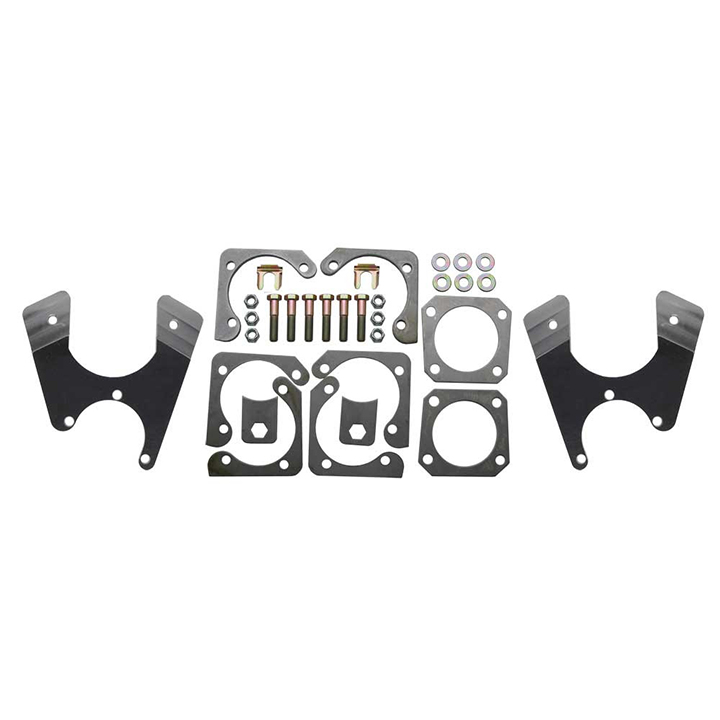

Caliper Brackets And Spacers

Bracket Hardware

Flex Hoses And Clips

Emergency Brake Cables

Kit Features And Specs:

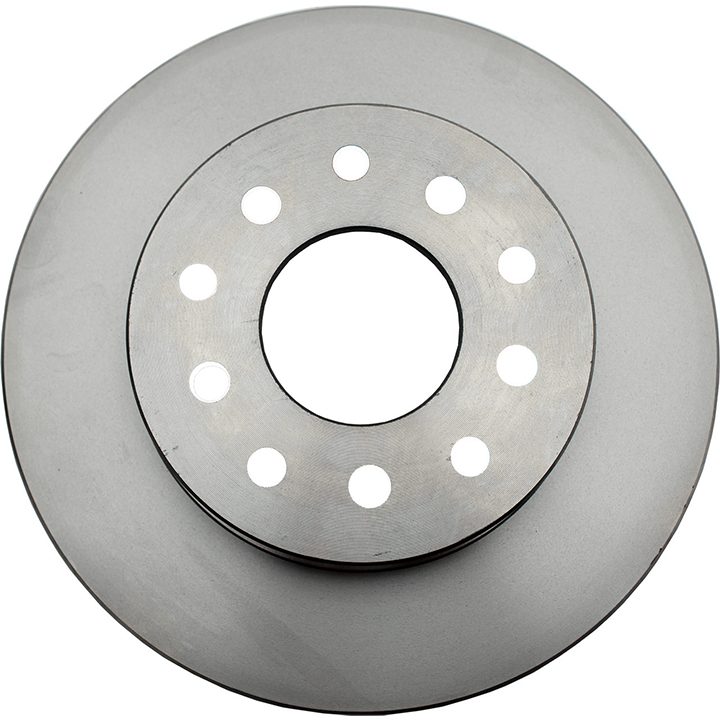

11 Inch Vented Dual Bolt Pattern Rotor

Fits 5x4.75 in. w/ 7/16 Studs and 5x4.5 in. w/ 1/2 In. Studs

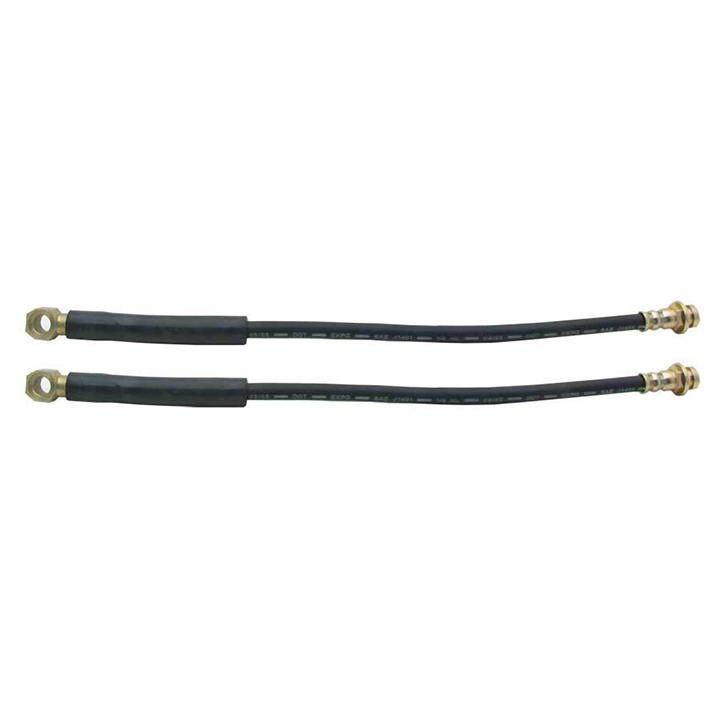

Rubber Flex Hoses

Parking Brake Cable Length (1) 36.22 In. (1) 39.76 In.

Minimum required wheel diameter 15 Inch

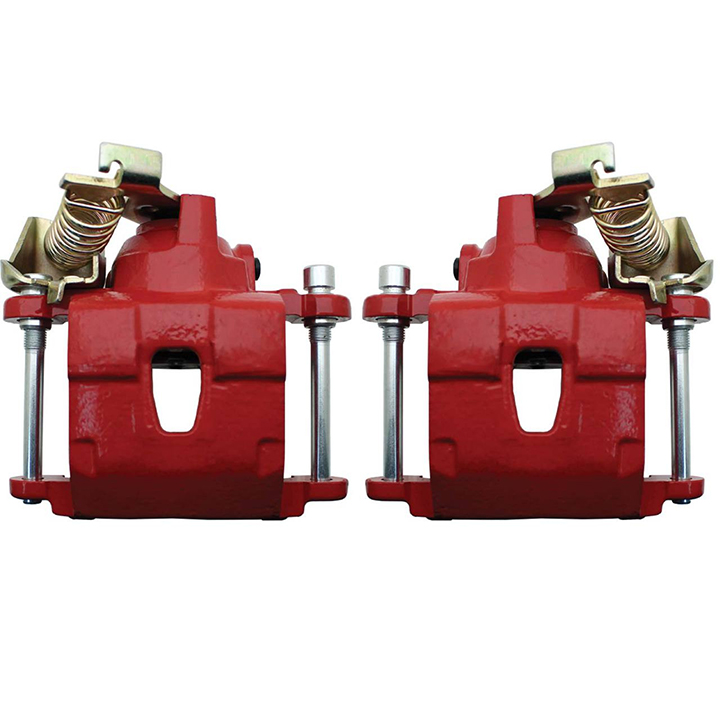

Red Powder Coated Cast Iron Calipers

Manufacturer Part Number : AFXDCRD01R-GUPX

Part Notes:

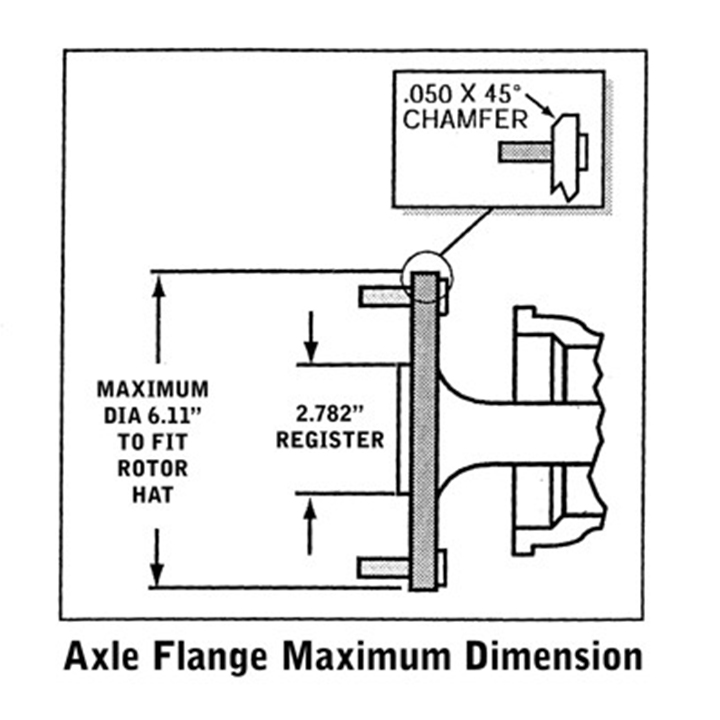

Does not fit S-10 Chassis or truck frames or 14 inch rims. Maximum diameter of 6.11 inch to fit rotor hat. .050x45 Degree Chamfer. 2.786 inch max register axle. When installing rear disc brake kit a disc/disc proportioning valve with a 1-1/8 inch bore master cylinder will be needed.
