Additional Information:
- Maximum crankshaft stroke = 4.00in
- Sump Oil Capacity - 5.6 Quarts
- Total Oil Capacity with stock oil filter - 6.1 Quarts
- Oil Filter (AC Delco PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent)
- Requires use of Holley HOL-302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031)
- Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type.
Features:
- LS Swap Pan similar to 302-3, but at a better retail price for naturally aspirated applications (turbo oil drain-back holes and plugs eliminated Đ for lower retail price)
- Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan

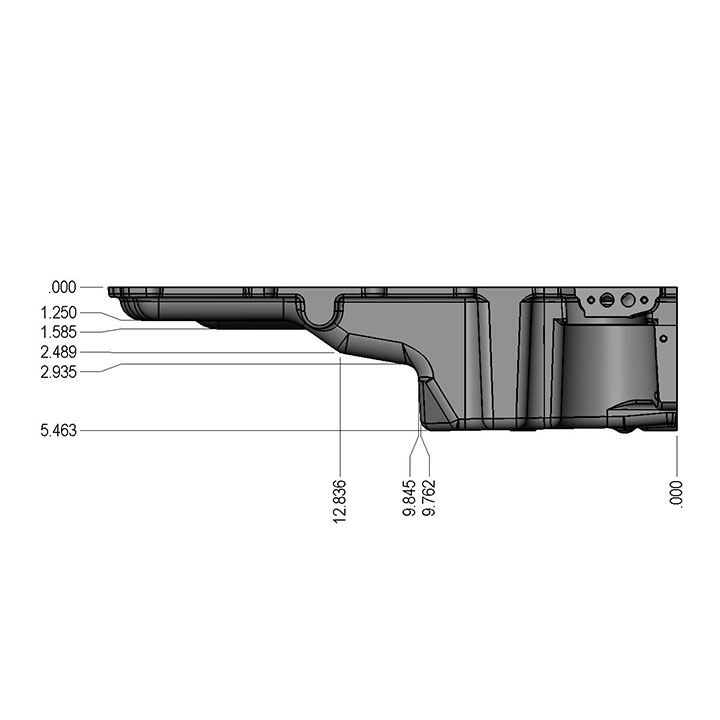

- Profile of the sump has been revised to provide extra chassis and steering rack clearance
- Perfect for: 1967-69 Camaro/Firebird, 1968-74 Nova/Apollo/Ventura/Omega, 1982-92 F-body, 1978-87 G-body, and 1964-72 A-body applications.
- Will clear a 4.00in stroke crankshaft.

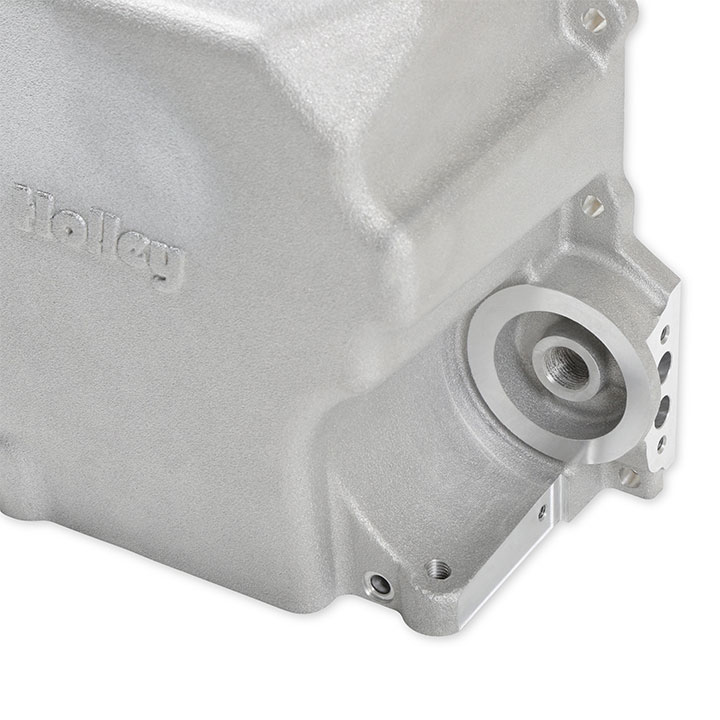

- Provides OEM fitment - OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity and OEM bell-housing attachments
- Traditional high-quality cast aluminum appearance with clean exterior styling
- Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member

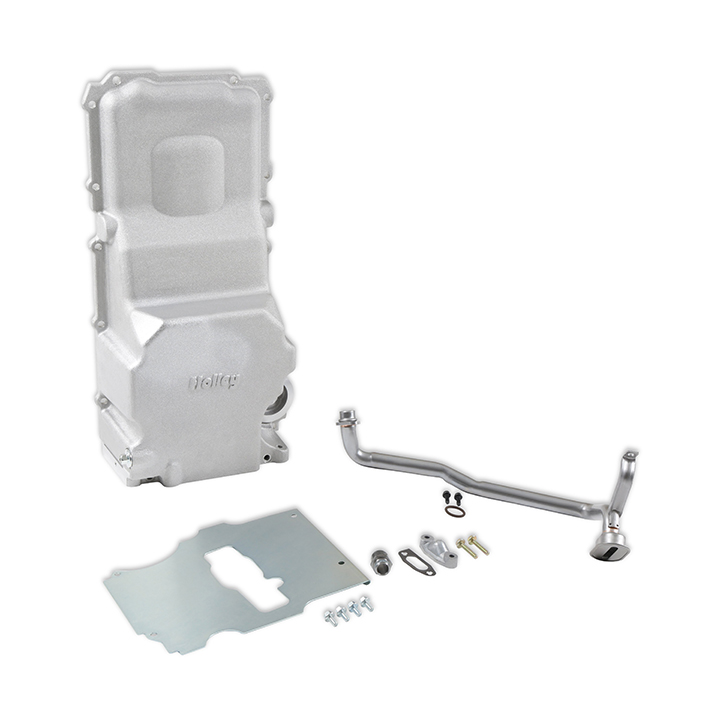

- Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
Specs:
- Finish: Natural Cast
- Oil Pan Capacity: 5.9 Quarts
- Oil Pan Type: Cast
- Warranty: Limited 90 Day
Manufacturer Part Number : 302-5
Part Notes:
HOL-302-5 is designed to use a GM F-body windage tray, GM part number 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the instruction sheets showing the windage tray modifications and overall length required. Additional Parts Needed-(Oil Pan Gasket GM 12612350, High Quality RTV sealer, Oil Filter -AC Delco PF48 or equivalent)
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
- SS396.com Part #: HOL-302-5
- Brand: Holley
- Manufacturer Part #: 302-5
- Sold As: Each
- Shipping Details: This item ships Ground.
