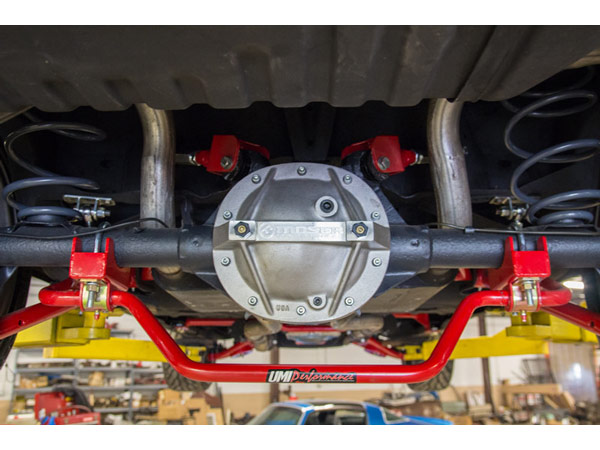

1970-1972 GM A-Body UMI 1 Inch Tubular Rear Sway Bar, 3325 Inch Rear End Housing, Chassis Mounted, B 4047-325-B

This UMI Performance Monte Carlo Pro-Tour style bar is a true multi purpose high performance rear sway bar. The chassis and differential housing mounts reduce bind normally associated with the factory style bars. The bars are 1 inch diameter hollow and feature three different rates (street/auto-x, road race/strip). UMI's tried and true CNC machined clamping system allows differential housing mounting on 3 inch and 3.25 inch diameter housings. These can be bolted on, or welded for additional security. The double shear chassis mounts are held in place by four 3/8 inch fasteners. Drilling through the crossmember is required and a template /instructions are included. The house made hex adjuster allows pre-loading of the bar when used for drag applications so your car leaves straight. Choose the longest hole for street, middle hole for auto-x, road race and the shortest hole for drag use.

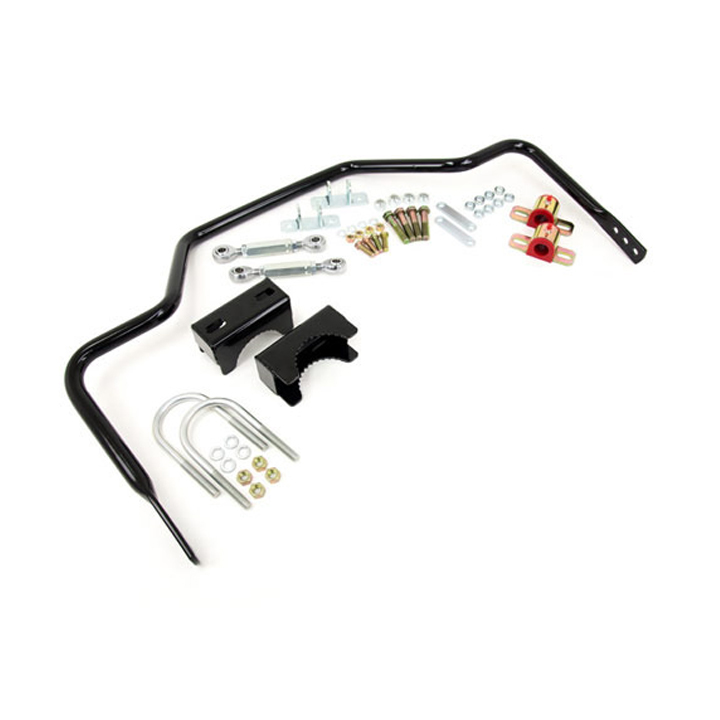

Features:

• Light weight 1 inch tubular sway bar, CNC bent.
• Designed to clear Moser Engineering 9 inch rear ends manufactured before early 2002.
• Heavy duty race style chromoly spherical rod ends with Teflon race.
• High strength 4140 chromoly zinc-plated u-bolts.
• CNC machined sway bar mounts with grip teeth and reinforcement gussets.
• 1 inch Billet steel hex adjuster for extreme strength.
• Premium greaseable polyurethane bushings.
• 100% bolt in installation!.
• Durable long lasting powder coat.

  Manufacturer Part Number : 4047-325-B
