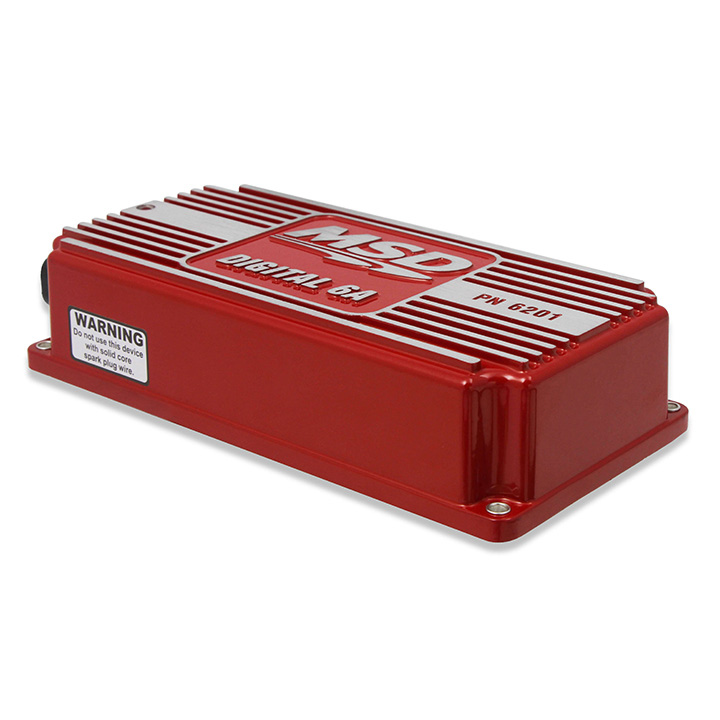

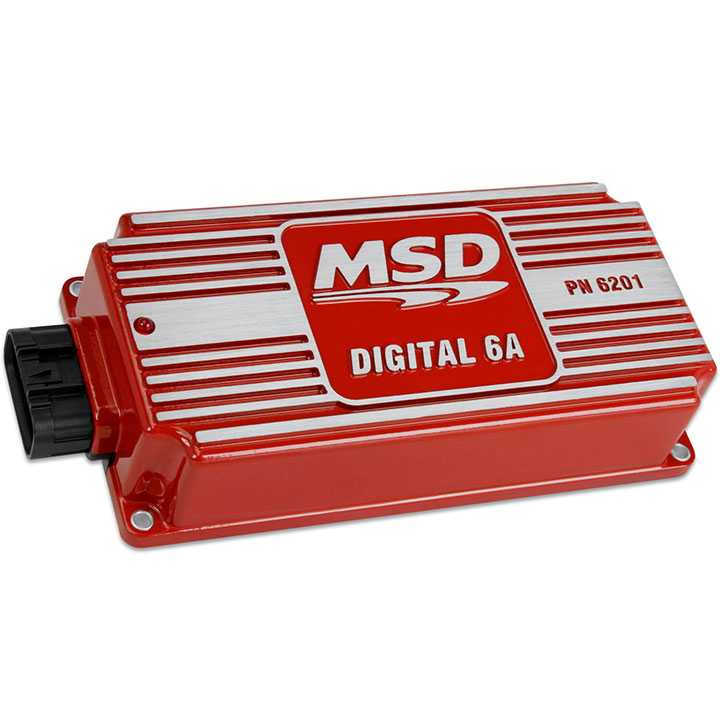

The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engine's efficiency. Above 3,000 RPM, a single spark stays lit for up to 20 degrees of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.

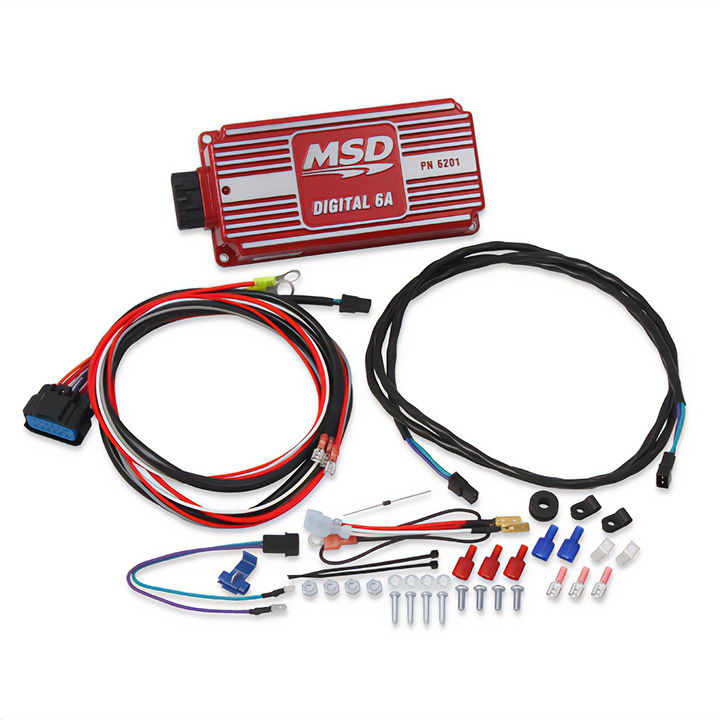

A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.
Features:
- Easy Starts
- Smooth Idle
- Quick throttle response
- Built-in LED for system checks
- Full, capacitive discharge ignition power throughout the RPM range
- Compatible with 4, 6 or 8 - cylinder engines
- Tach output wire
- Sealed, locking connector
Specifications:
- Color: Red
- Current Draw: .7 Amp per 1,000 RPM
- Features: No Rev Limiter
- Primary Voltage: 520-540 Volts
- RPM Range: 15,000 RPM with 14.4 Volts
- Secondary Voltage: 45,000 Volts
- Spark Energy: 135-145 mJ per spark
- Voltage Required: 12-15 Volts, 7 Volt Start
- Weight and Size: 1.7 lbs., 8 in. L x 4 in. W x 1.825 in. H
Manufacturer Part Number : 6201
Part Notes:
CARB EO: D-40-43
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
- SS396.com Part #: MSD-6201
- Brand: MSD Ignition
- Manufacturer Part #: 6201
- Sold As: Each
- Shipping Details: This item ships Ground.
