1962-1979 Nova V8 Low-Profile Pro Billet Distributor with Crab Cap, Black Cap JM9601BK

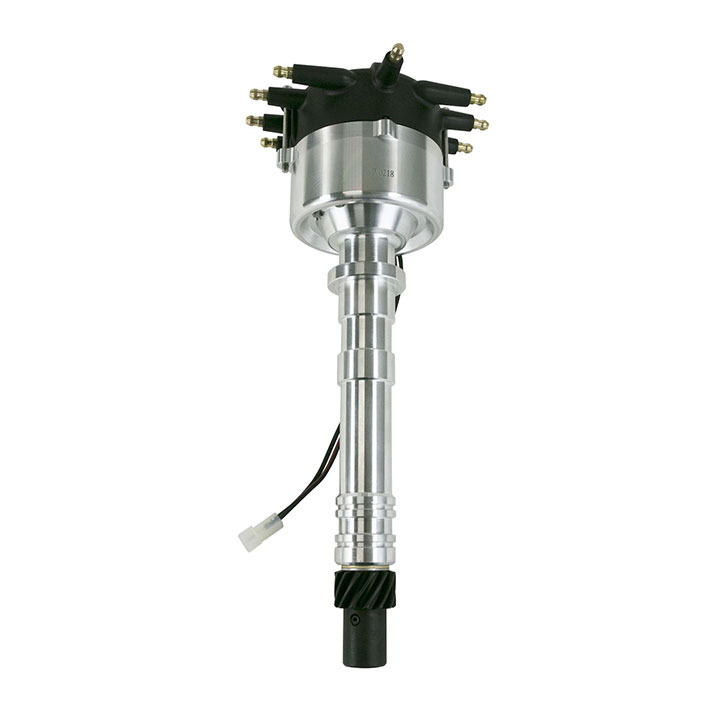

TSP's Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance Nova. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. This new low-profile distributor features a re-designed housing and crab-style cap. Measuring less than 5" from the mounting surface to the top, installing a blower will be a breeze.

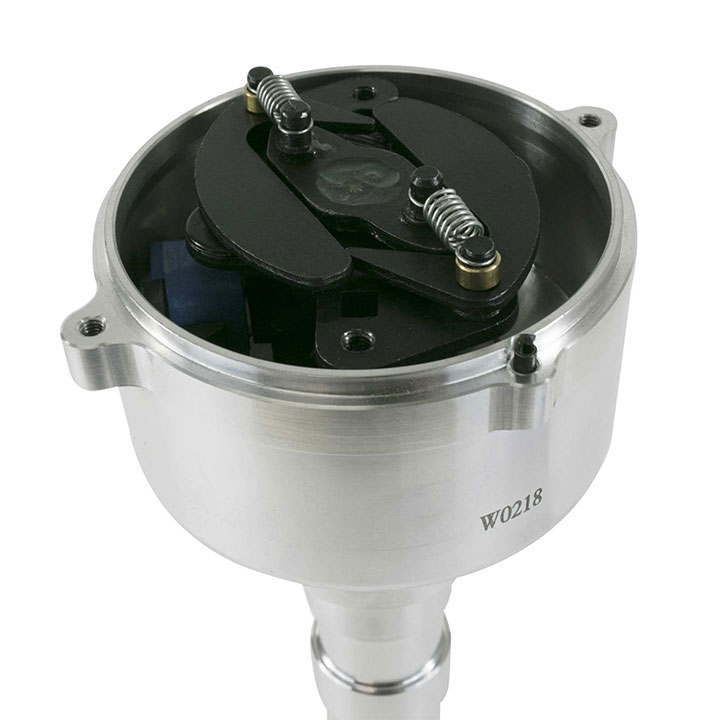

An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.

Features and Specifications:

• Trigger Style: Magnetic
• Advance Type: Mechanical

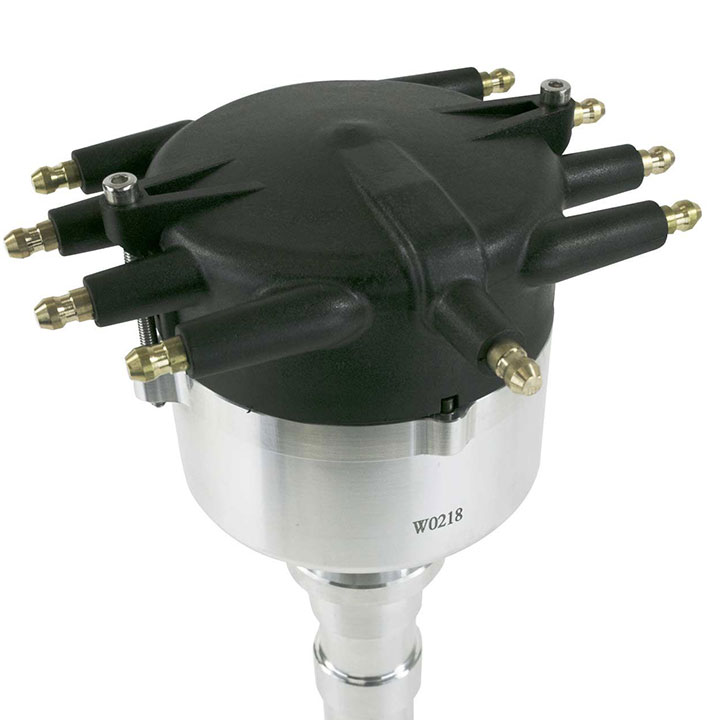

• Cap Style: Crab with Male Terminals
• Mechanical Tach Drive: No
• Slip Collar: No
• Coil Included: No
• Coil Type: External
• Coil Output: 35,000+ Volt Recommended
• Gear Material: Steel
• Housing Material: Machined Aluminum
• Ignition Box Required: Yes
• Included: 3 Bushings and 4 Springs for Mechanical Advance

Manufacturer Part Number : JM9601BK

Part Notes:

Requires the use of an ignition control system and external ignition coil.
