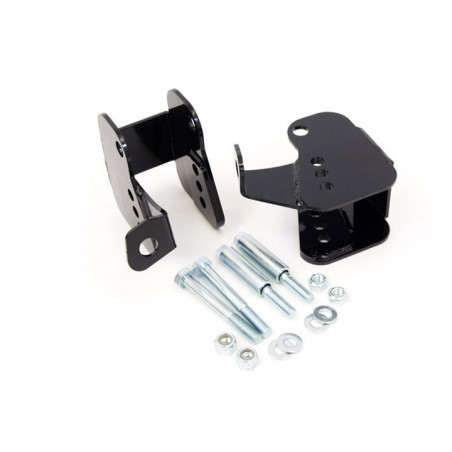

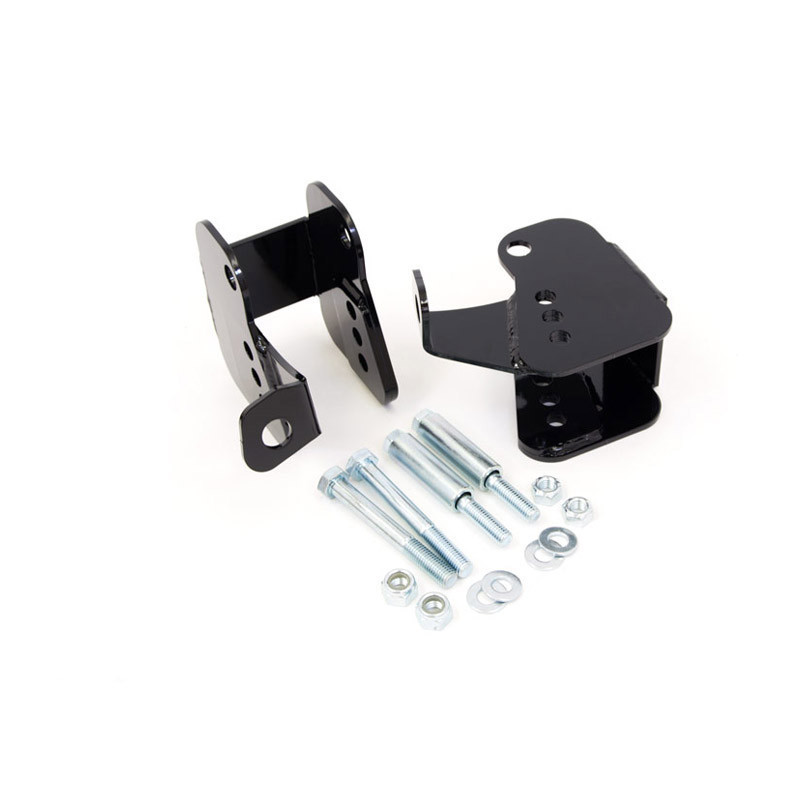

1982-2002 Chevrolet UMI Lower Control Arm Relocation Brackets, Bolt In - Black 2012-B

Wheel hop or traction issues? UMI has the solution! Optimize your 1982-2002 Chevrolet's instant center and improve forward traction by lowering the rear of the lower control arm 2 inches, 2-3/4 inches, or 3-1/4 inches. These bolt in brackets are CAD designed to accommodate factory lower control arms as well as all popular aftermarket styles. Robust flanges inside the brackets add reinforcement and ensure factory bushings bolt right in. Brackets installed can provide an average of 0.10 second (or better) 60-foot reduction and an overall improvement in launch consistency. Brackets are constructed of 3/16th inch mild steel and CNC laser cut for precision tolerances. Relocation brackets are designed to work on both lowered and non-lowered vehicles and feature multiple settings to optimize vehicle handling and traction.Features:Works with factory height or lowered vehicles. Simply bolt-in & launch using your existing factory control armsMultiple adjustment holes ideal to correct control arm angle on lowered vehicles while improving tractionChoose 2 inch, 2-3/4 inch, or 3-1/4 inch drop to optimize vehicle handling and tractionTrack testing shows an average of 0.10 second reduction in 60-foot timesCAD designed, CNC laser cut 3/16 inch mild steelAdjustment holes follow natural arc of lower control arm for direct bolt-inNew grade 10.9 hardware includedManufactured with pride in Philipsburg, PA - USA

Manufacturer Part Number : 2012-B

Part Notes:

UMI-2012 bolt in relocation brackets are designed for the factory rear end housings and also fit Strange Engineering bracket rear ends. They will not correctly fit Moser Engineering brand rear ends, please see UMI-2011 for a Moser Engineering weld in specific bracket.
