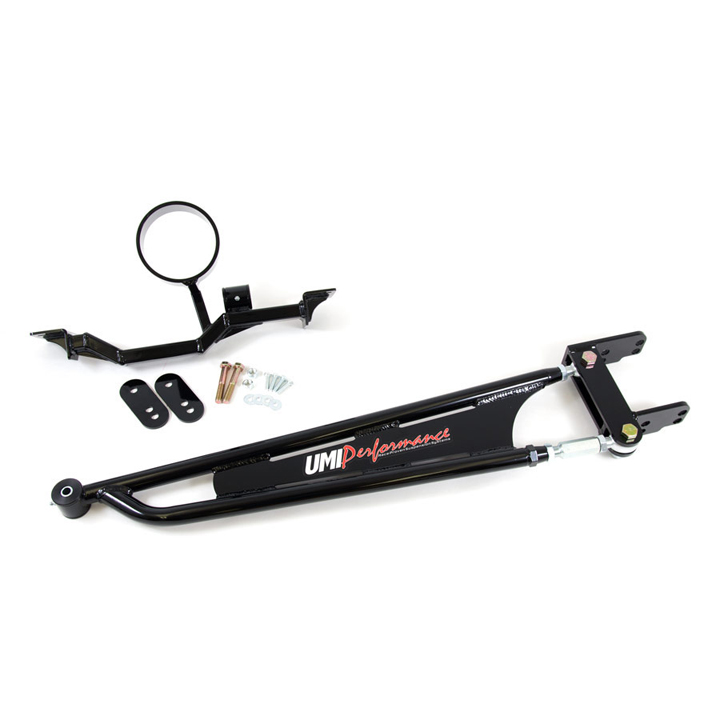

1993-2002 Chevrolet UMI Tunnel Brace Mounted Torque Arm with DS Loop, Long Tube Headers, Black 2203-B

Track abuse, street abuse, or just flat-out abuse, this torque arm is designed to handle it all! Eliminate unwanted traction problems by adding a UMI Performance tunnel brace mounted torque arm to your 1993-2002 Chevrolet. This aftermarket torque arm replaces the flimsy factory torque arm while adding strength, rigidity and eliminating suspension flex. UMI's torque arm design relocates the front torque arm mounting point off the transmission tail shaft protecting the transmission and preventing transmission damage. A shorter torque arm improves weight transfer on acceleration. General Motors tail shaft mounted design works great for a stock driven vehicle however it was not designed to take the abuse of a drag car. UMI's tunnel mounted torque arm bolts to existing floor pan holes using 3/16 inch thick mild steel laser cut mounting plates and metric grade 10.9 hardware. The torque arm attaches to the supplied cross brace using polyurethane bushings on both the supplied cross brace and torque arm to help absorb noise. The torque arm rear mount is 3/8 inch thick CNC machined mounting plates and are appropriately drilled to fit the stock rear ends as well as aftermarket 12-Bolts, 9 inch Rear-end housings and Strange S60.Torque Arm Benefits:Removes torque arm from transmission tail shaft, protecting transmission from damagePivot brackets allow instant center adjustmentEliminates wheel hop and solves traction problemsReduces front end nose dive during brakingAllows for easy on the car pinion angle adjustmentsGreaseable polyurethane bushings designed to keep road noise at a minimumBolt-on design requires no welding or drilling during installationFeatures:Fabricated from 1.250 in. x 0.120 in. DOM seamless steel tubingCrossmember uses 0.120 in. x 2.000 in. rectangular tubingTIG welded 4140 chromoly tube adapters, built in housePinion changes made using 4140 chromoly heat treated adjuster, built in houseCNC laser cut mounting plates to ensure hole to hole accuracyRear mounting plates machined from 3/8 in. thick mild steel for strength and designed to fit stock rear end as well as 12-bolt, S60 and 9 inch housingsTorque arm attaches to mount using solid 3/4 in. rod eyes and grade 8 hardwareDurable gloss powder coat finish

Manufacturer Part Number : 2203-B

Part Notes:

UMI-2203 is designed with a drop down front crossmember and built in drive shaft loop to clear virtually all aftermarket header/y-pipe setups on the market. It will also clear most merge collectors such as QTP and TSP y-pipes. The built-in driveshaft loop will not clear factory y-pipe and y-pipes that bolt to the factory manifolds on 1998-2002 models. UMI-2203 does reduce ground clearance, if vehicle has a tighter fitting y-pipe setup please see UMI-2201.
