1982-1992 Chevrolet UMI Torque Arm Relocation Kit, TH350 - Red 2230-R

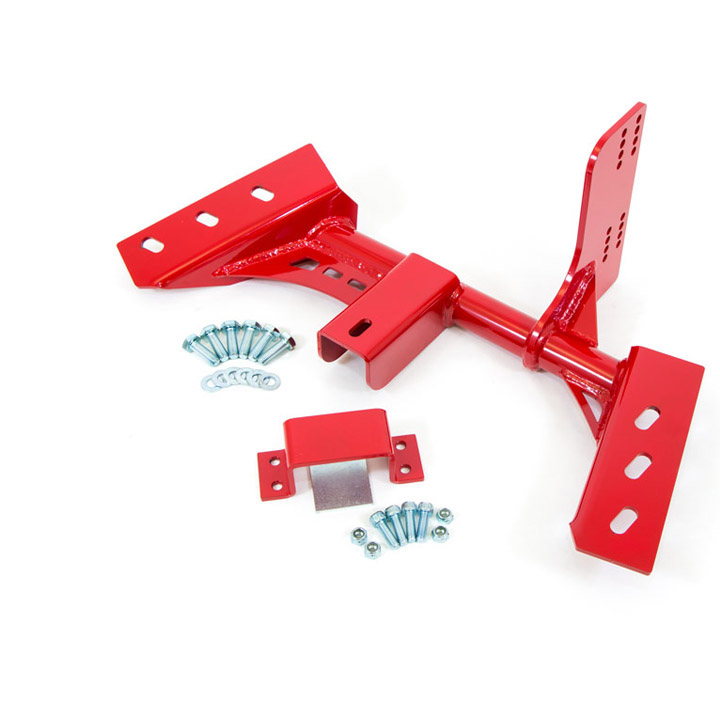

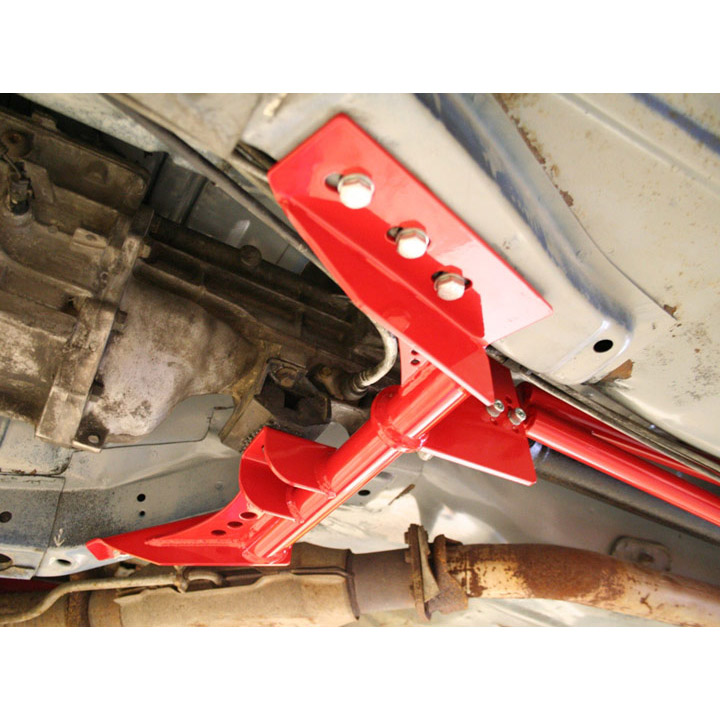

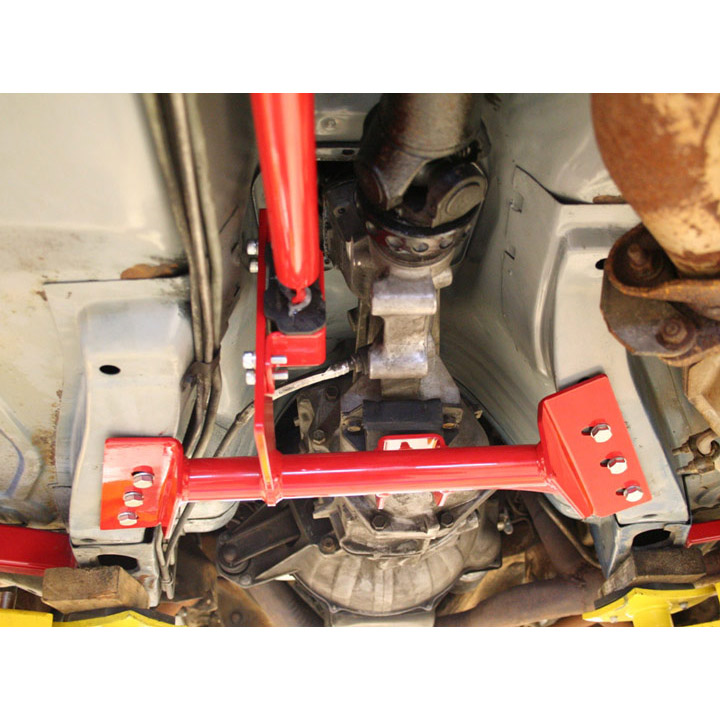

Installing a TH350 automatic transmission into your 1982-1992 Chevrolet just got easier. This transmission cross member with integrated torque arm mount features the correct provisions for mounting the TH350 transmission while still allowing the use of a factory style torque arm. The built in torque arm mount will work with virtually any stock style aftermarket torque arm as well as the factory torque arm and features instant center adjustment by moving the front of the torque arm up or down. This unit is built using DOM mild steel tubing, 0.188 inch mild steel mounting plates and includes all the appropriate hardware needed for the installation. The torque arm mount is machined from 0.250 inch thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. There is no need to purchase any other torque arm brackets when using this kit.Features:This kit allows the installation of a TH350 transmission into a 82-92 F-Body and features provisions for running a stock style torque armDesigned to tuck tight against the vehicle chassis and will not effect vehicle ground clearanceThis setup will work with virtually any torque arm on the market as long as it bolts into the stock location. It will also work excellent with the stock torque arm when using a 1 piece bushingThis kit is 100% bolt-in and requires no drilling, cutting or welding. It bolts in place of the stock cross member using the existing holes

Manufacturer Part Number : 2230-R

Part Notes:

This must be used with a solid one piece polyurethane bushing. It will not work with the factory bushing that utilizes a two piece design. If using a stock torque arm with this relocation kit, an aftermarket polyurethane bushing must be purchased.
