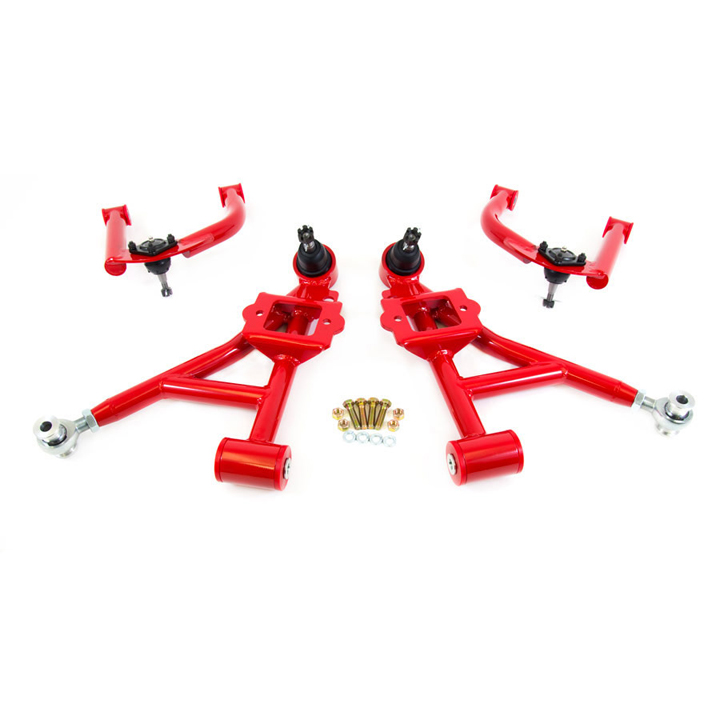

1993-2002 Chevrolet UMI Front Control Arm Kit, Red 230511-R

UMI's fabricated tubular control arms provide a rock solid foundation for your 4th Gen's front suspension. Our a-arm kit is built to offer increased rigidity, smooth travel, a precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4 inch diameter tubular sections are precision bent, CNC notched and welded in a jig to form the solid base. The 4130 chromoly tube adapter on the lower a-arm provides a durable attachment point for the precision rod-end while the other side features a smooth, quiet bind free polyurethane bushing. The lower control arms feature UMI's new bind free bushing end that uses a two piece heavy duty sleeve that allows the a-arm to pivot freely while the upper control arms use street friendly greasebale polyurethane bushings. The unique combination of precision and comfort makes for a great street oriented a-arm kit with racing tendencies. The spring and shock attach to the lower arm via a tough 1/4 inch thick steel shock mount. The CNC machined lower ball joint cup and CNC laser cut upper pad feature premium ball joints installed. UMI's tubular lower control arms can be installed on the factory k-member or any aftermarket k-member as well as the stock spindle making this a true bolt-on product.Features:1-1/4 inch USA mild steel DOM tubingTIG welded 4130 CrMo threaded tube adapters for thread durabilityCNC machined lower ball joint cupHeavy duty CNC laser cut 1/4 inch thick shock mountPremium upper and lower ball joints installed3/4 inch Teflon lined, high load capacity race rod endsGreaseable polyurethane bushingsHigh grade shock mounting hardware includedUses balance of OEM hardware or use new UMI hardware kitDurable red or black powder coatMade in Philipsburg, PA - USA

Manufacturer Part Number : 230511-R
