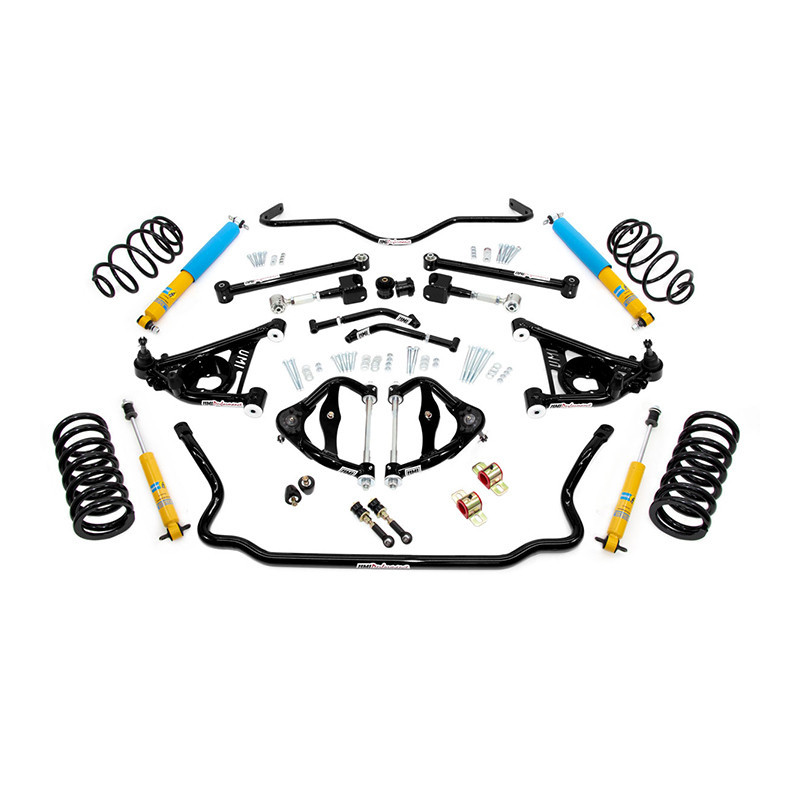

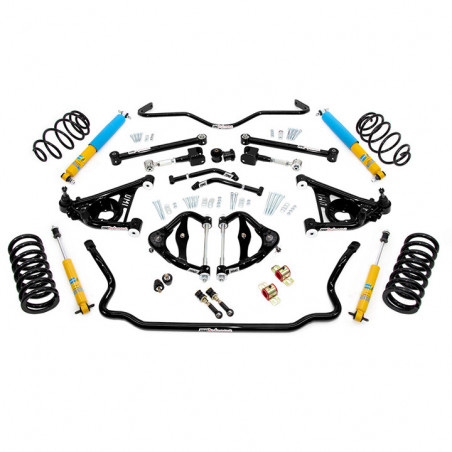

1978-1988 Chevrolet UMI Stage 3 Handling Package, 1 Inch Lowering Springs, Black GBF003-1-B

UMI's Stage 3 kit is designed to achieve great street manners combined with Pro-Touring handling capability. In this newest revision we've refined our parts list to provide the most common options in one convenient package. Simply click and enjoy the performance. Up front you'll find Delrin lower a-arm bushings for precise steering along with 1/2 inch taller upper ball joints to plant that tire's contact patch. Out back we include our popular Roto-Joints and an adjustable length upper control arm so the axle can articulate nicely after you've perfected the driveline angle. Sway bars are UMI's tried and true 1-1/4 inch front and 1 inch rear for a great front to rear handling balance. UMI's new monotube gas shocks help to control the new premium 1 inch lowering springs. The Stage 3 kit is available in beautiful red or black powder coat and is 100% designed, tested, manufactured and raced out of our shop in Philipsburg, PA USA.Features:Increased spindle height by 1/2 inch via tall upper ball joints for improved camber gain and a better contact patch. Works nicely in conjunction with lowering springsUpper a-arms add caster for improved steering feel and straight line stabilityLower a-arms feature UMI-built Delrin bushings and accept standard springs or coilovers1.250 inch front sway bar for flat cornering, CNC bent from 4140 balanced with 1 inch solid heat formed rear sway barUMI shocks feature monotube construction and designed & tuned for optimum ride quality combined with responsive handlingUMI springs feature ultra premium CrSi material with linear rates front and rear for consistent handling (600lb/in. front, 130lb/in. rear)Rear trailing arms feature Poly and Roto-Joints as well as adjustable uppers for setting pinion angle and rear lateral locationRoto-Joints allow smooth articulation for improved handling and less bindUMI Stage 3 Handling Kit Includes:UMI-3032 : Tubular lower front a-arms with Delrin bushingsUMI-3033-2 : Tubular upper front a-arms with Delrin bushings & 1/2 inch taller ball jointsUMI-3035 : Heavy duty 1-1/4 inch front sway bar with new bushings & endlinksUMI-3034 : Solid 1 inch heat treated rear sway barUMI-3038 : Tubular rear lower control arms with Roto-JointUMI-3037 : Adjustable rear upper control arms with Roto-JointsUMI-3028 : Tubular frame braces with hardwareUMI-3000 : Replacement rear end housing bushingsUMI-3013 : Front upper & lower grade 8 hardware kitUMI-3001 : Rear control arm grade 8 hardware kitUMI-S41030 : UMI monotube shocks, designed & tuned for optimum ride quality combined with performanceUMI-3050 : 1 inch lowering springs, 600lb/in. front and 130lb/in. rear

Manufacturer Part Number : GBF003-1-B

Part Notes:

Springs intended for small block engine. Lightweight LS may require trimming and an additional 1/4 inch front end drop may occur with a full weight big block.
