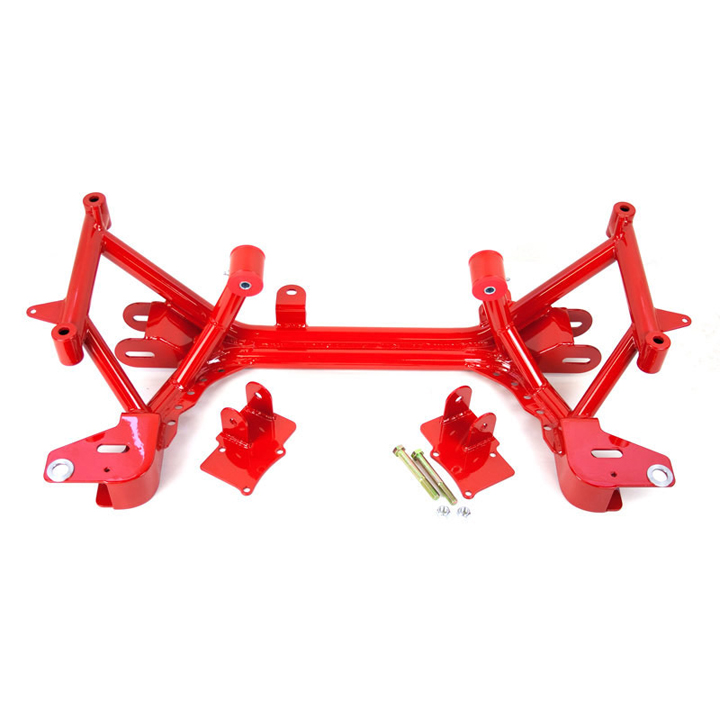

1993-1997 Camaro UMI SBC/BBC K-Member, Red 2322-R

The UMI Performance big block/small block K-member allows the installation of a traditional Camaro small block or big block into a 1993-2002 Camaro. The UMI tubular K-member features integrated polyurethane mount mounts and fabricated mounting clam shells for maximum weight savings and installation ease. K-member includes power steering rack mounts and is a direct bolt in application.
Features:

• Main center tube constructed of 1.500 in. x 0.120 in. DOM seamless steel tubing
• Additional cross braces use 1.250 in. x 0.120 in. DOM seamless steel tubing
• Entire k-member features both TIG & MIG welded construction for superior strength
• Front & rear a-arm mounts CNC machined & fabricated from 0.188 in. thick steel
• Rear a-arm mounts gusseted to withstand extreme side loads & pressure
• Dual tube center section adds increased strength over any competitors design
• All mounting plates are CNC machined to ensure hole to hole accuracy
• Factory locator pins included for easy installation & exact fit
• Completely fixture welded to ensure factory fitment with no grinding or cutting
• Standard power steering rack mounts included
• Durable powder coat finish, available bright red or gloss black
• Automatically reduces 25 lbs. of front end weight
• Offers additional clearance for headers & turbo piping
• A-arm slots lengthened 1/2 in. over factory for additional adjustment
• Rear main cross tube lowered for oil pan protection & coverage
• Uses integrated motor mounts for maximum weight reduction

Manufacturer Part Number : 2322-R

Part Notes:

Although this K-member allows easy installation of a small block or big block Chevrolet engine modifications to firewall and other areas may be necessary for proper engine clearance.
