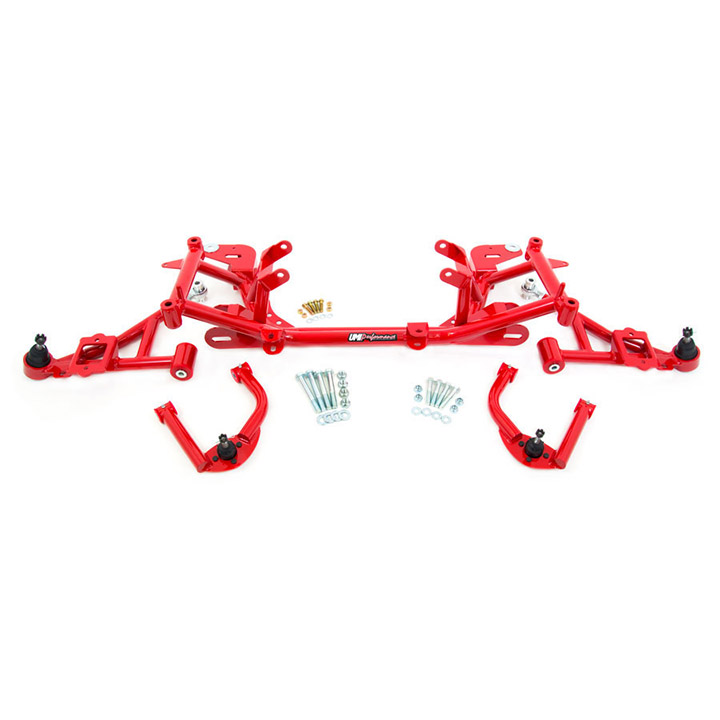

1998-2002 Camaro UMI LS1 Front End Kit, Street Stage 2, Red FBS002-R

UMI's Stage 2 kit provides a solid foundation for your street Camaro used for drag strip duty. It features the best of both worlds combining weight reduction and strength with performance and comfort. Our dual tube k-member is known as the strongest in its class and can withstand wheel stand landings and street abuse while still shaving weight as well as protecting the oil pan. The P/N UMI-2305 lower arms feature poly bushings on the straight strut portion to absorb road noise while the non-adjustable uppers guide the suspension on greaseable poly bushings. The upper and lower Control Arms are assembled with premium ball joints and save an additional 8lbs of weight. UMI's k-member and Control Arms are built from strong USA DOM tubing, precision bent, CNC notched and welded in a jig to form a solid base. Included k-member is designed to work with factory motor mounts, polyurethane motor mounts or UMI's popular solid billet aluminum motor mounts P/N UMI-2323. The Stage 2 kit is a direct bolt in removing front end weight while maintaining street comfort and enhancing performance.
Features:

• Heavy duty k-member with dual tube construction
• Tubular upper and lower a-arms with greaseable polyurethane bushings
• Premium upper and lower ball joints installed
• 33lbs of front end weight savings
• Chromoly a-arms save an additional 1-1/2 lbs.
• Works with factory steering rack
• Direct bolt-in replacement, no welding
• Includes new grade 10.9 a-arm mounting hardware
• Manufactured in Philipsburg, PA - USA

UMI Stage 2 Includes:

• UMI-2320 - Tubular dual tube k-member
• UMI-2305 - Tubular street lower a-arms
• UMI-2311 - Tubular street upper a-arms, polyurethane bushings
• UMI-2303 - Grade 10.9 hardware with Ny-lock nuts

Manufacturer Part Number : FBS002-R

Part Notes:
